VM-WHBV5

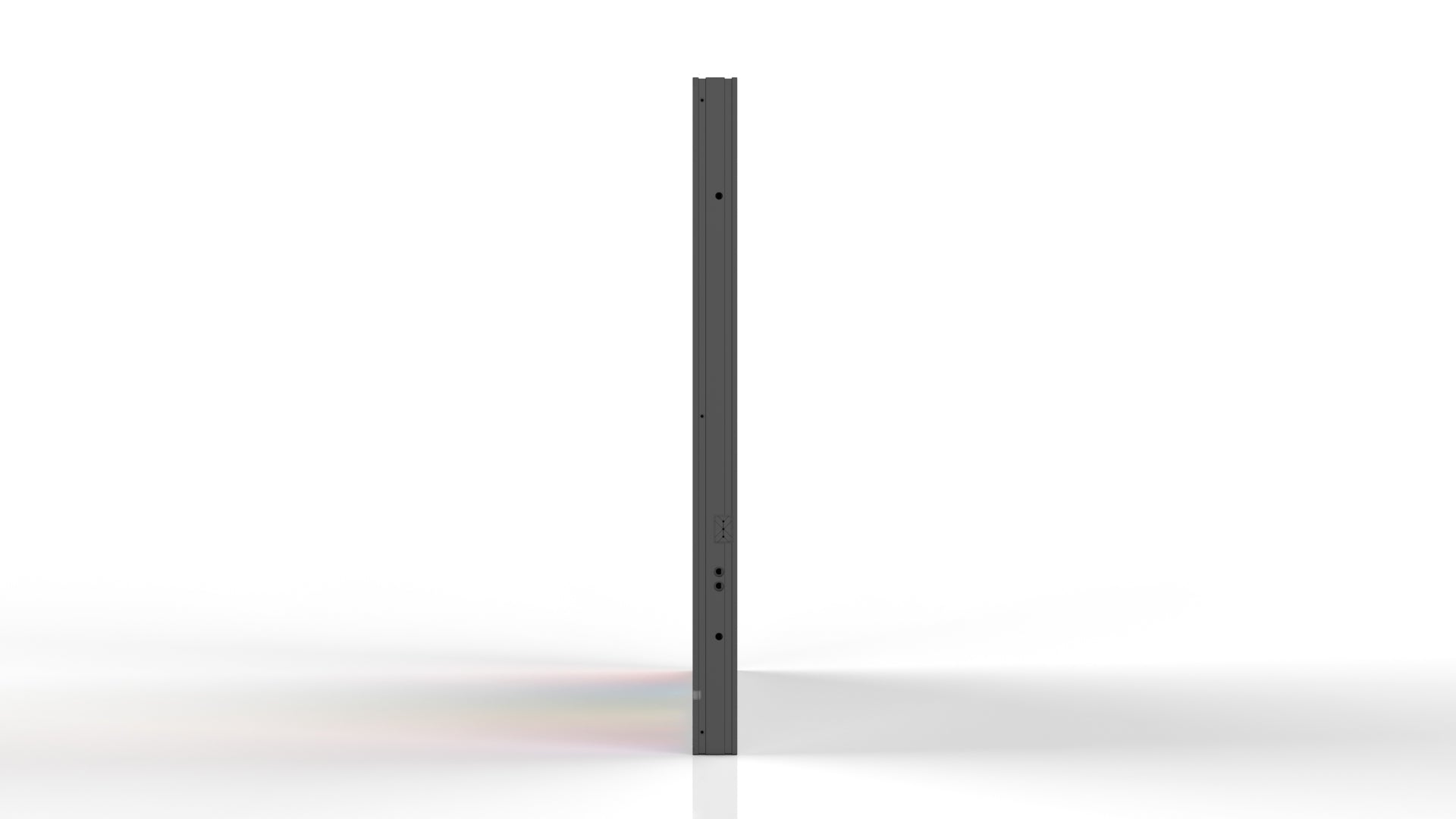

A professional high-brightness window display designed for retail storefronts, featuring 3,000-nit brightness, a heat-resistant panel, active thermal management and a 47mm ultra-slim profile.
Display Performance
Bring storefront campaigns into focus with bright, detailed images and wide-angle IPS viewing.
The ambient light sensor automatically adjusts screen brightness as surrounding light conditions change.
IPS panel · 12 mm narrow bezel
Connectivity & Installation
Keep cables organized for a clean, professional installation.
Integrate the display with compatible brackets and mounting systems.
Recessed connections and a front infrared receiver simplify access and control.
Installation Options
Choose the mounting solution that fits your storefront layout, available space and installation requirements.
Thermal Reliability
High-temperature display components and active thermal management work together to support reliable window-facing operation.
Backlight Engineering
The Mini OD10 LED backlight combines a multilayer optical structure with a high-temperature LCD panel and diffusion plate. Together, these components support uniform illumination, efficient light output and thermal stability.
Thermal Management
Low-noise fans and real-time temperature monitoring help manage heat buildup in window-facing installations. Automatic thermal protection reduces backlight power when needed and restores normal power after the display cools.
| Model | WHBV5-32 | WHBV5-43 | WHBV5-49 | WHBV5-55 | WHBV5-65 | WHBV5-75 |
|---|---|---|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| Display Area (mm) | 703×397 | 942×530 | 1075×605 | 1210×681 | 1429×804 | 1651×930 |
| LCD Panel Type | IPS | |||||
| Backlight | DLED | |||||
| Speaker | 5W, 8Ω (2 sets) | |||||
| Aspect Ratio | 16:9 | |||||
| Contrast Ratio | 1200:1 | |||||
| Viewing Angle (H/V) | 178°H / 178°V | |||||
| Brightness | 3000 nits | |||||
| Color Depth | 16.7M | |||||
| Response Time | 6 ms | |||||
| Operation Hour | 24/7 | |||||
| Light Life Time | ≥50000 hours | |||||
| Power Voltage | AC 100~240V, 50Hz/60Hz | |||||
| Power Consumption | 130W | 180W | 200W | 280W | 450W | 560W |
| Operating Temperature | 0°C ~ 50°C | |||||
| Operating Humidity | 10% ~ 80% | |||||
| Protection Glass | N/A | |||||
| Screen TNI | 105°C | 105°C | 105°C | 105°C | 105°C | 105°C |
| Dimension (mm) | 725.8×420.4 | 968.8×556.8 | 1101.8×631.8 | 1237×707.8 | 1456×830.8 | 1678×957 |
| Package Size (cm) | 89×20×58 | 113×20×72 | 126×21×79 | 140×20×87 | 162×21×100 | 185×21×111 |
| Net Weight (kg) | 10 | 15 | 19 | 24.6 | 31.5 | 39.2 |
| Gross Weight (kg) | 14 | 20.5 | 25.5 | 32.5 | 46 | 51.5 |
| VESA Hole (mm) | 400×300 | 400×400 | 400×400 | 400×400 | 600×400 | 600×400 |
| Android | RK3576 | |||||
| Interface | USB ×2 | RJ45 ×1 | HDMI IN ×1 | |||||
| System Version | Android 14.0 | |||||
| RAM | 4G | |||||
| ROM | 32G | |||||
| Bluetooth | 5.0 | |||||
| WiFi | 2.4G / 5G | |||||
| Option |
Upgrade PC to i3, i5 or i7 Processor Anti-glare panel Monitor with HDMI input |
|||||
VM-WHBV5 FAQ
Find answers about sunlight exposure, thermal protection, brightness control, content management and OEM projects with the VM-WHBV5 high-brightness window display.
The VM-WHBV5 is designed for window-facing installations exposed to sunlight. A heat-resistant LCD panel, active cooling and automatic thermal protection help manage heat buildup. Adequate ventilation is required, and fully enclosed installations should be avoided. Backlight power may be reduced automatically when thermal protection is activated.
Yes. The built-in ambient light sensor automatically adjusts screen brightness as surrounding light conditions change. You can also adjust brightness manually using the control knob on the back of the display.
Yes. The Android configuration supports VMision's free cloud CMS, allowing you to update content and manage multiple connected displays across different locations from a computer or mobile device. No recurring CMS subscription or additional per-device subscription fee is required for the included CMS. An internet connection is needed for cloud-based management.
Android and Windows configurations are available for different project requirements. Please share your software name, required operating system and hardware requirements with our sales team. We can review compatibility and recommend a suitable configuration before you place your order.
The VM-WHBV5 is designed for indoor, window-facing installation behind storefront glass. It should not be directly exposed to rain or outdoor weather. For exposed outdoor installations, we recommend a dedicated outdoor display with suitable weather protection.
Yes. VMision can discuss OEM and private-label requirements, including your logo, enclosure color, product identification and hardware configuration. Available customization options, minimum order quantities and lead times depend on the requested changes and order volume. Contact our sales team to discuss your project.
