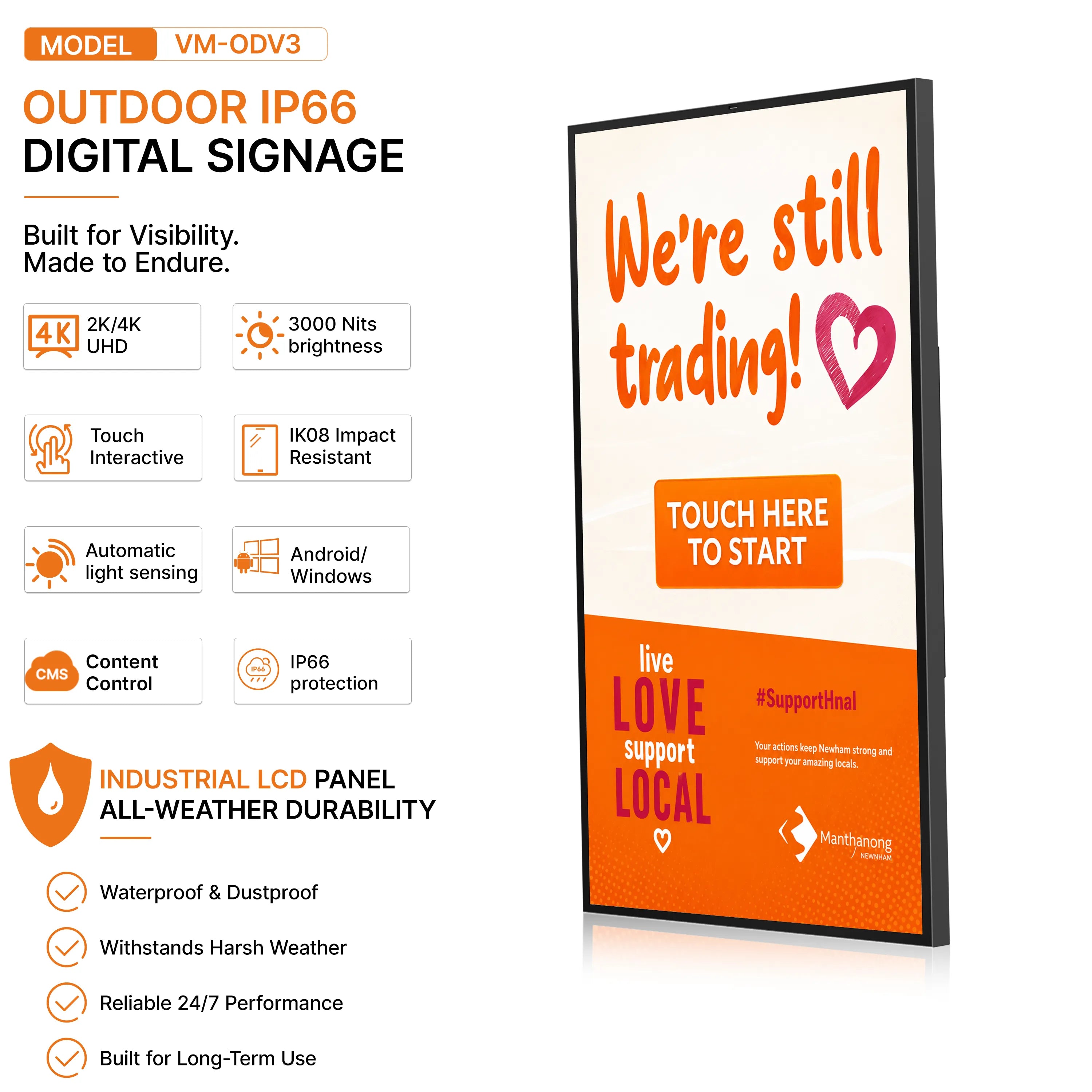

VM-ODV3 Outdoor Ultra-Thin Digital Signage
The VM-ODV3 is an industrial-grade IP66 + IK08 outdoor digital signage display delivering 3000 nits of sunlight-readable 4K clarity with smart auto-brightness adjustment — visible from day to night without manual intervention.
Size : 32” 43" 49" 55" 65" 75"
● 3000nit brightness
● Automatic brightness adjustment
● Anti-glare glass
● 2k/4k display
● Windows and Android option
● Touch screen option
● Free CMS system/digital signage application
● IP66 rated
● Designed for 24/7 operation with a lifespan of over 50,000 hours
● Customized color and logo
Outdoor IP66
Digital Signage.
Built for Visibility. Made to Endure.
The VM-ODV3 is an industrial-grade outdoor digital signage display engineered to perform where standard screens fail — delivering 3000 nits of sunlight-readable brightness with full IP66 all-weather protection, 24 hours a day, 365 days a year.
Waterproof & Dustproof — sealed against rain, dust and humidity
Withstands Harsh Weather — extreme heat, cold, and storms
Reliable 24/7 Performance — built for uninterrupted operation
Built for Long-Term Use — 50,000+ hours commercial lifespan

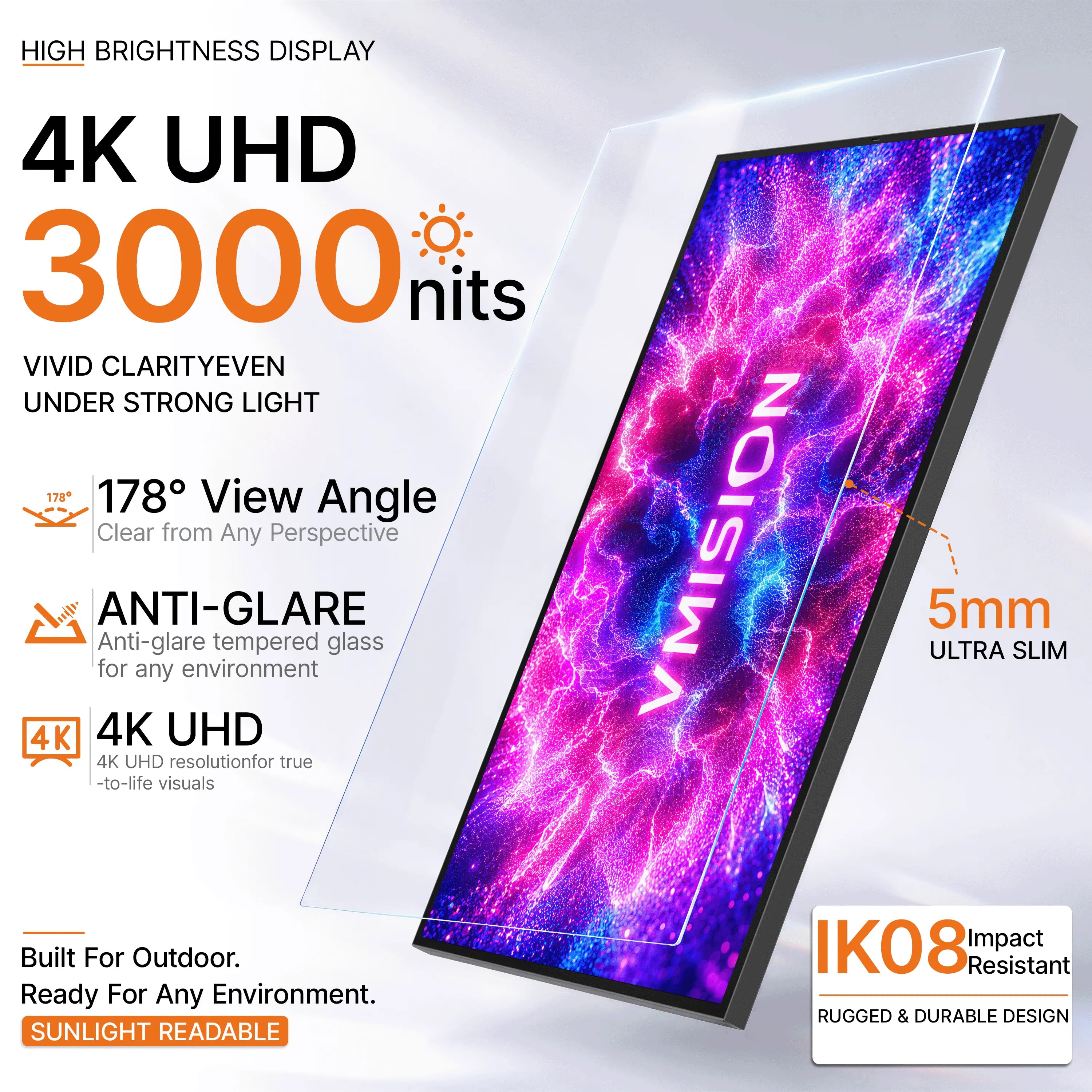

4K UHD. 3000 Nits.
Vivid Under Any Light.
Sunlight Readable — Built for Outdoor. Ready for Any Environment.
At 3000 nits, the VM-ODV3 delivers true-to-life 4K visuals that remain sharp and vivid even in direct noon sunlight — protected by IK08 impact-resistant anti-glare tempered glass that stays clear and scratch-free through years of outdoor exposure.

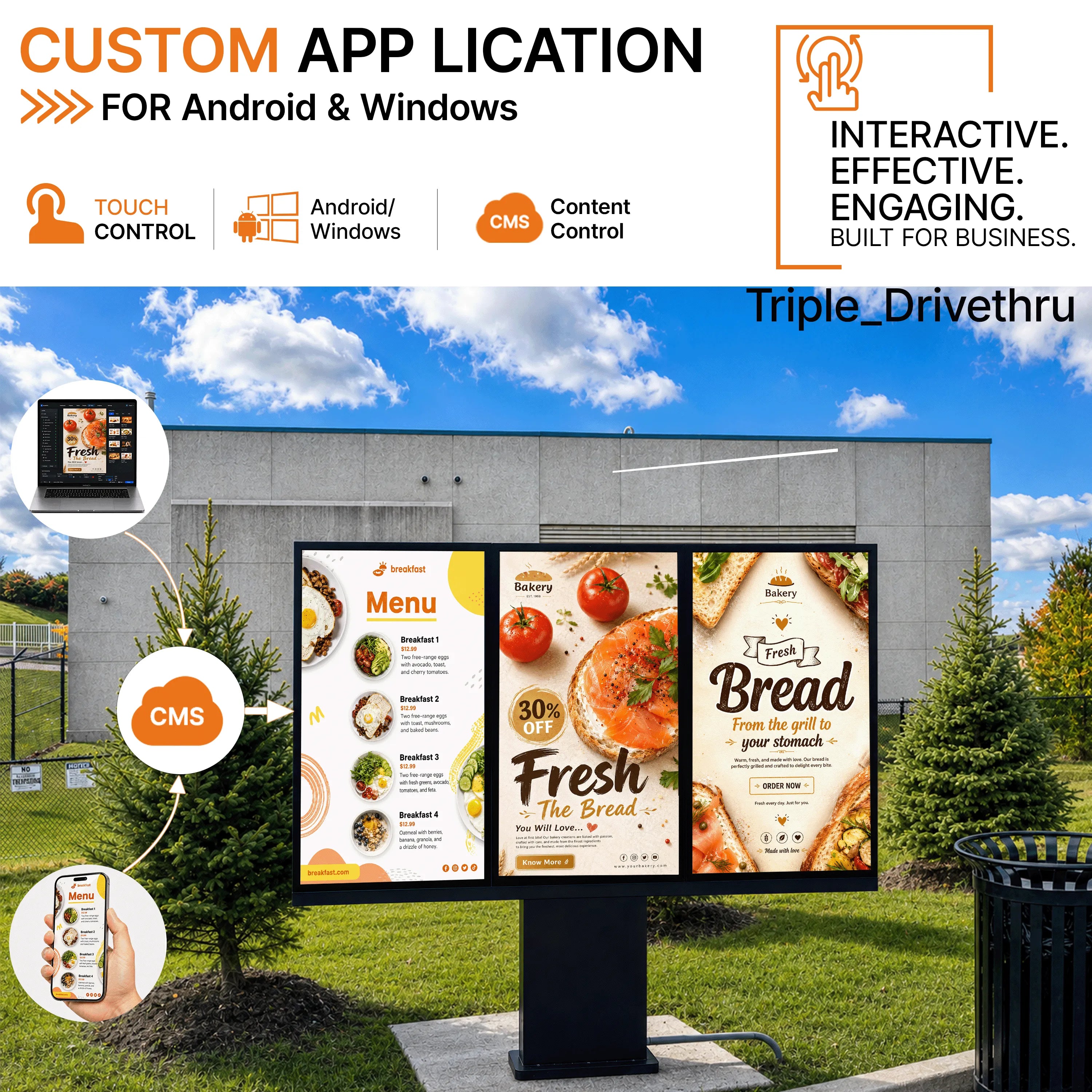

Built for Android
& Windows.
Interactive. Effective. Engaging. Built for Business.
Run any custom application on the VM-ODV3 — from drive-thru menu boards to interactive wayfinding. Android and Windows support means your existing software stack works out of the box, while CMS gives you centralised control of every screen in your network.
G+G PCAP interactive option for customer engagement.
Choose the OS that fits your existing software ecosystem.
Free cloud CMS for remote management of all screens.
Up to three panels combined in one modular drive-thru configuration — menu, order confirmation, and promotional content all on one display system.
Push new content to any outdoor display remotely — no on-site visit needed for menu updates, promotions, or schedule changes.

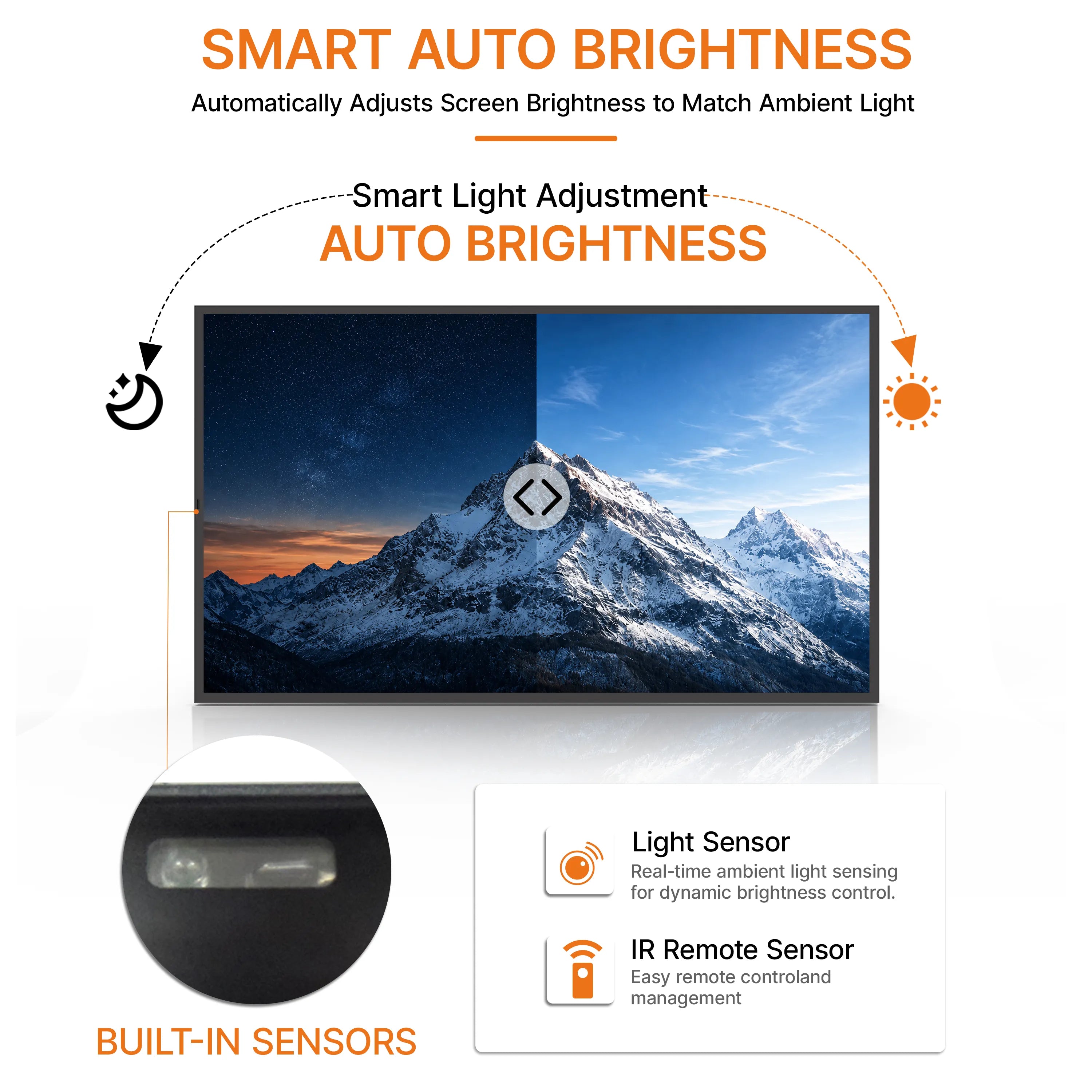

Automatic Light Sensing.
Always the Right Brightness.
Automatically adjusts screen brightness to match ambient light.
The VM-ODV3's built-in light sensor continuously monitors ambient light levels and adjusts screen brightness in real time — saving energy at night while ramping to full 3000 nits power in direct midday sunlight, without any manual intervention.
From bright noon sun to dark night streets, the display adapts continuously — always visible, never over-powered. No staff needed to adjust settings.
Smart dimming at low-light hours significantly reduces power consumption compared to fixed-brightness displays — extending component life and cutting electricity costs.
Real-time ambient light sensing for dynamic brightness control.
Easy remote control and management of screen settings.

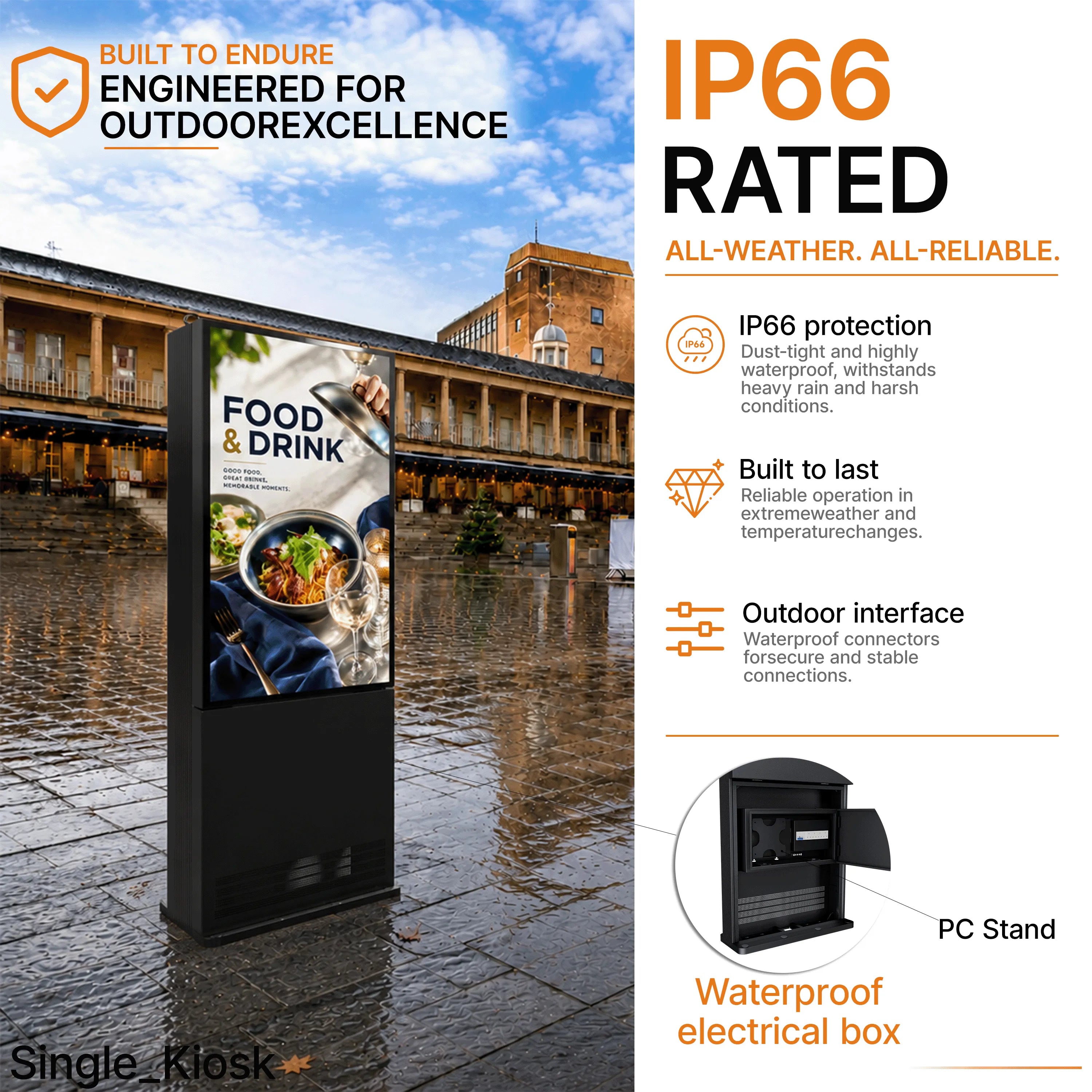

IP66 Rated.
All-Weather. All-Reliable.
Engineered for Outdoor Excellence.
IP66 certification means total protection against dust ingress and high-pressure water jets — the VM-ODV3 operates flawlessly through monsoon rain, coastal salt air, desert sandstorms, and sub-zero winters without any compromise to display performance.
Dust-tight + high-pressure waterproof — the highest dual rating for outdoor displays
Dust-tight and highly waterproof — withstands heavy rain, storm jets, and harsh outdoor conditions without seal failure.
Sealed outdoor-rated PC stand and electrical box with waterproof connectors — secure and stable connections in any weather condition.

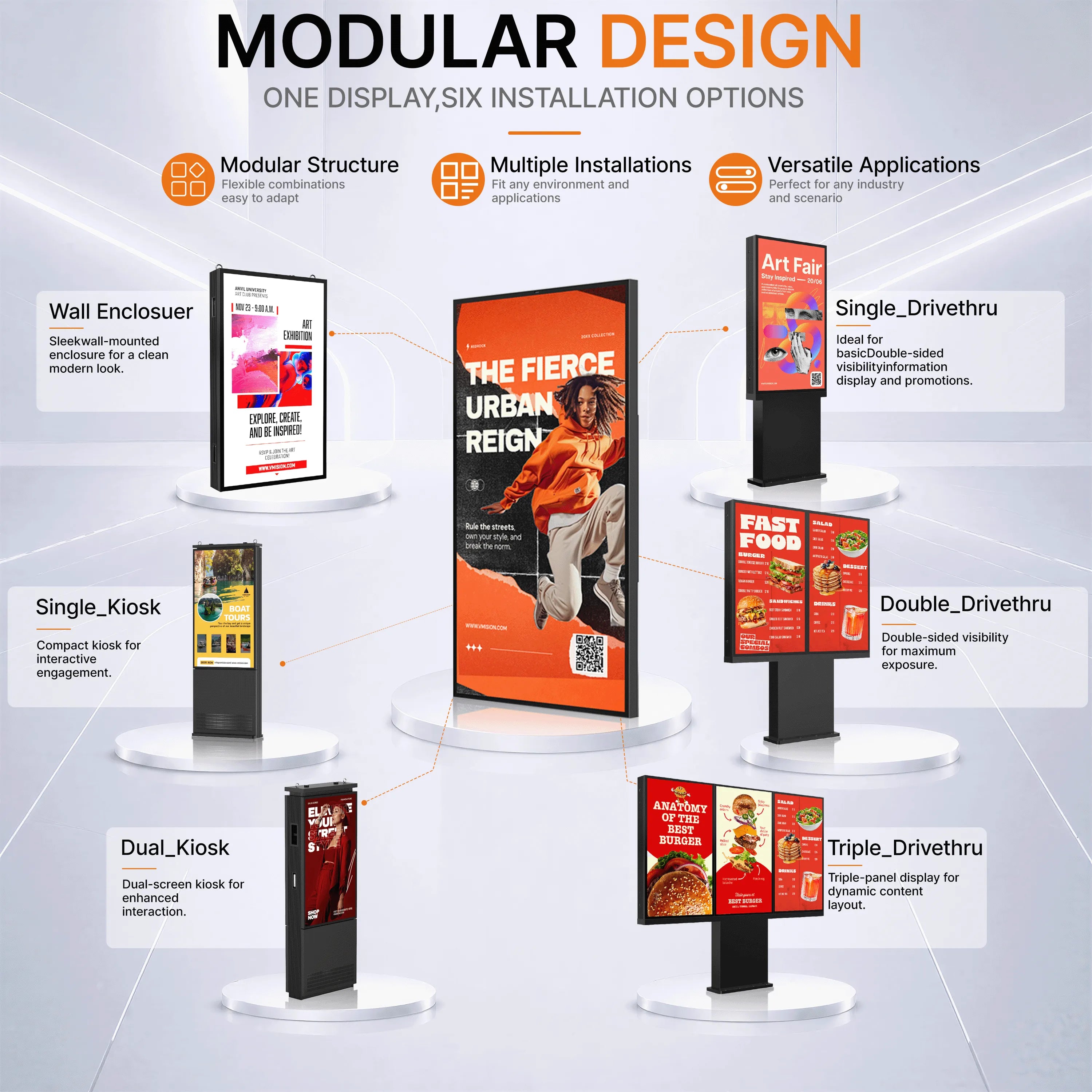

One Display.
Six Installation Options.
Flexible combinations — fit any environment and scenario.
The VM-ODV3's modular structure lets you configure the same display panel into six completely different installation formats — from sleek wall enclosures for storefronts to triple drive-thru panels for fast food restaurants — without needing different hardware.
Sleek wall-mounted for clean modern look.
Compact standalone for interactive engagement.
Dual-screen for enhanced interaction.
Basic double-sided visibility and promotions.
Double-sided for maximum exposure.
Triple-panel for dynamic content layout.

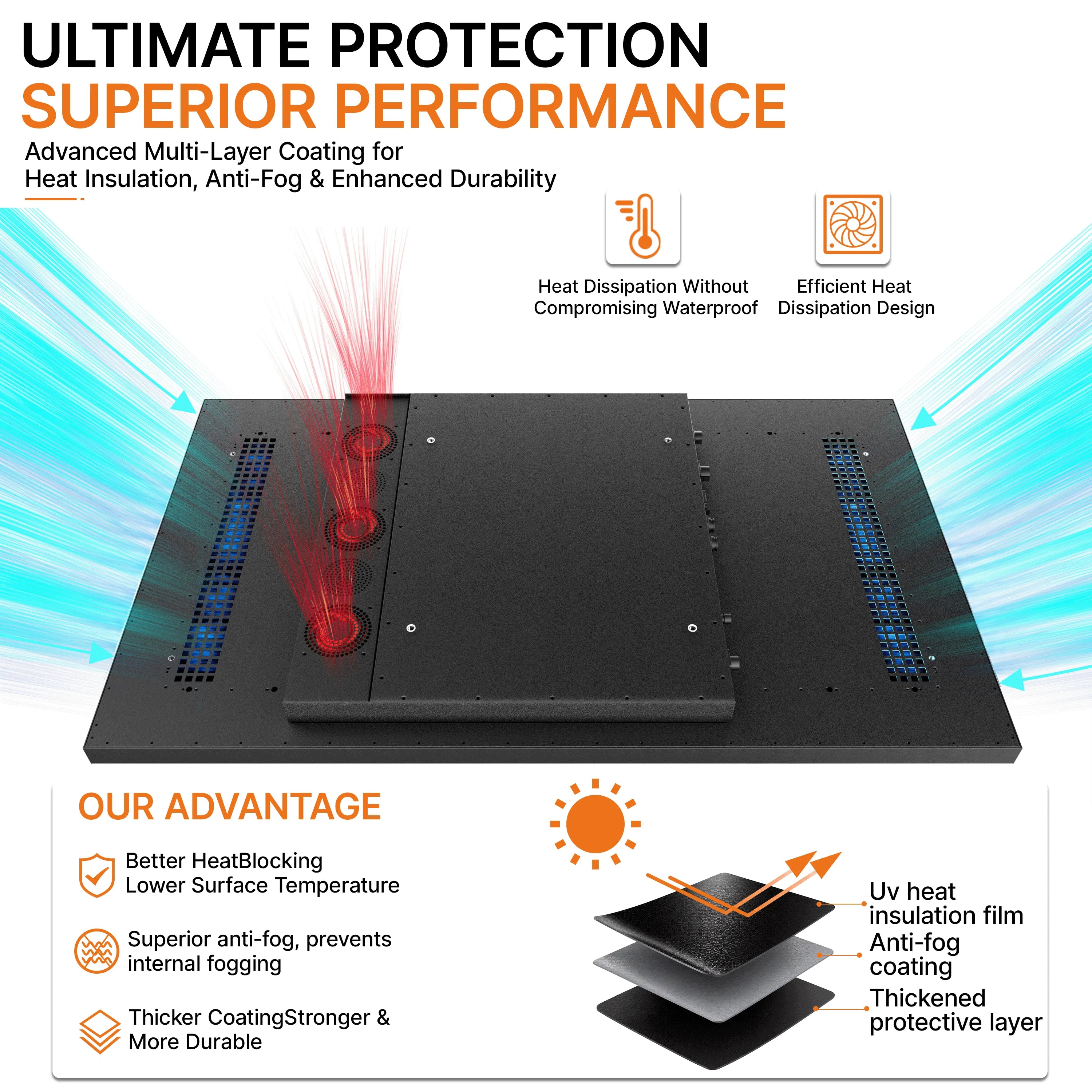

Superior Performance.
Advanced Multi-Layer Coating.
Heat insulation · Anti-fog · Enhanced durability.
Where most outdoor displays overheat and fail, the VM-ODV3 excels. An advanced multi-layer coating system — UV heat insulation film, anti-fog coating, and thickened protective layer — combined with an efficient heat dissipation fan system, keeps internal temperature low and performance consistent year-round.
Efficient fan-driven heat dissipation engineered to keep internal temperatures low while maintaining full IP66 waterproof integrity — no trade-off between cooling and protection.
Blocks UV radiation and solar heat — significantly reduces internal temperature build-up.
Superior anti-fog treatment prevents internal condensation — display stays clear in humidity and rain.
Stronger and more durable outer shell — thicker coating for long-term outdoor structural integrity.
Specification
| Model | VM-ODV3-32 | VM-ODV3-43 | VM-ODV3-49 | VM-ODV3-55 | VM-ODV3-65 | VM-ODV3-75 |
|---|---|---|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| Display Area (mm) | 699×394 | 942×530 | 1075×605 | 1210×681 | 1429×804 | 1651×930 |
| LCD Panel Type | IPS | |||||
| Backlight | LED | |||||
| Speaker | 10W, 8Ω (2 sets) | |||||
| Aspect Ratio | 16:9 | |||||
| Contrast Ratio | 1200:1 | |||||
| Viewing Angle (H/V) | 178°H / 178°V | |||||
| Brightness | 3000 nits | |||||
| Color Depth | 16.7M | |||||
| Response Time | 6 ms | |||||
| Operation Hour | 24/7 | |||||
| Light Life Time | ≥50000 hours | |||||
| Power Voltage | AC 100~240V, 50Hz/60Hz | |||||
| Power Consumption | 135W | 165W | 189W | 280W | 385W | 470W |
| Operating Temperature | -20°C ~ 60°C | |||||
| Operating Humidity | 10% ~ 80% | |||||
| Protection Class | 5mm AG tempered glass with UV heat insulation film | |||||
| Screen TNI | 105°C | 105°C | 105°C | 105°C | 105°C | 105°C |
| Dimension (mm) | 750.8×445.4 | 994×582.4 | 1127×657 | 1262×732.8 | 1481×856 | 1703.2×982 |
| Package Size (cm) | 89×21×58 | 113×21×71 | 127×21×79 | 140×21×86 | 162×21×99 | 185×21×111 |
| Net Weight (kg) | 16.5 | 25.9 | 31 | 36.8 | 49.5 | 65.5 |
| Gross Weight (kg) | 20.75 | 31.45 | 38.1 | 44.5 | 60.5 | 83.5 |
| VESA Hole (mm) | 250×300 | 400×400 | 400×400 | 400×400 | 600×600 | 600×600 |
| Android | RK3576 | |||||
| Interface | USB×2 | RJ45×1 | HDMI IN×1 | |||||
| System Version | Android 14.0 | |||||
| RAM | 4G | |||||
| ROM | 32G | |||||
| Bluetooth | 5.0 | |||||
| WiFi | 2.4G / 5G | |||||
| Option |
Upgrade PC to i3, i5 or i7 Processor Touch screen Monitor only remove Android |
|||||
