Display Performance
High Brightness on Both Sides
The outward-facing panel delivers up to 3,000 nits for window-facing advertising, while the indoor-facing panel operates at 700 nits for comfortable indoor viewing.
VM-WHBV4
Dual-Sided High-Brightness Window Display
Double Impact. One Smart Solution.
Designed for retail windows, the VM-WHBV4 delivers 3,000 nits outward-facing brightness and 700 nits inward-facing brightness. Automatic light sensing and a heat-resistant panel support clear, reliable dual-sided advertising.
43", 49", 55"
65", 75" Screen Sizes
3,000 / 700 nits
Outward / Inward Brightness
2K / 4K UHD
Resolution Options
Android / Windows
OS Options
Automatic
Brightness Adjustment
Heat-Resistant
Commercial-Grade Panel
VM-WHBV4 · Dual-Sided Window Display
One Display.
Double the Impact.
Deliver high-impact advertising to passers-by outside while keeping content clear and comfortable to view indoors. The VM-WHBV4 combines two displays in one slim window-facing solution.
3,000 nits
Outward-facing display
700 nits
Inward-facing display
57 mm
Slim dual-sided design
4K UHD
Resolution option
Performance & Reliability
Built for Window Display Applications
Strong outward visibility and considered thermal management support dependable performance in commercial window-display environments.
Thermal Management
Designed to Manage Heat
Ventilated metal housing, high-airflow fans, an aluminum structure and smart temperature control help manage heat during extended commercial operation.
Application & Selection
Flexible Options for Different Projects
Choose an installation method and screen size to suit the storefront layout, available space and project requirements.

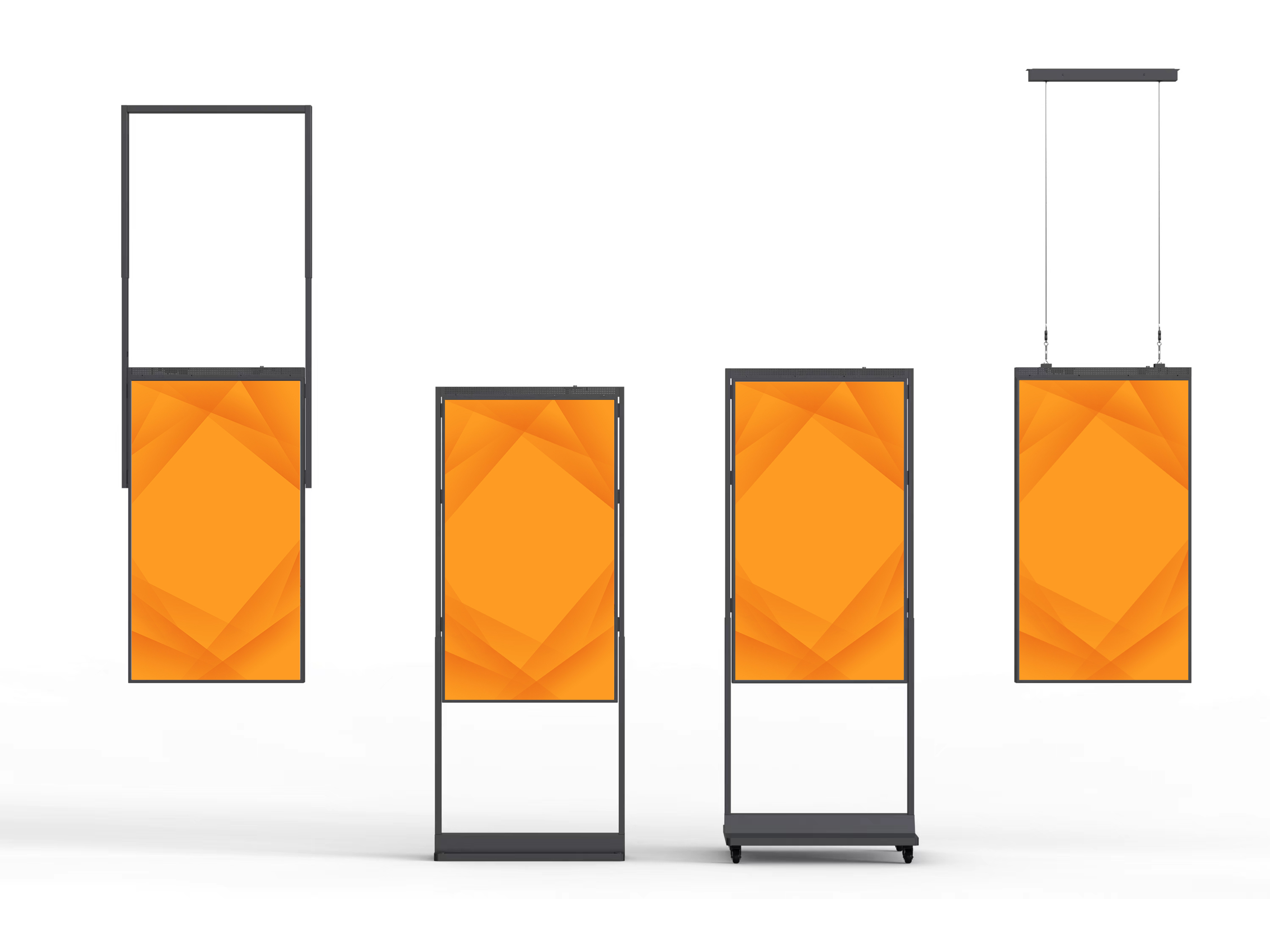

Installation Options
One Display, Multiple Setups
Select a mounting solution that works for the storefront, from ceiling-suspended installations to fixed or mobile floor stands.
Size Options
Five Sizes for More Flexibility
Choose from five screen sizes to match different storefront widths, viewing distances and campaign needs.
Connectivity & Maintenance
Practical Connections.
Cleaner Installation.
A clearly organized port layout supports installation, media playback and routine maintenance in commercial environments.
- HDMI input
- USB media playback
- RJ45 / LAN
- Wi-Fi on network version
- IR receiver
- DC 12V output
- AC 100–240V power input
- Power switch
* LAN and Wi-Fi are available on the network version.
Content Management
Cloud-Based CMS.
Control from Anywhere.
Manage digital signage content remotely from a phone or PC. Publish content, monitor connected displays, schedule playback and organize screen layouts without visiting each display individually.
- Remote content publishing
- Device monitoring
- Scheduled playback
- Split-screen layouts
Specification
| Model | WHBV4-43 | WHBV4-49 | WHBV4-55 | WHBV4-65 | WHBV4-75 |
|---|---|---|---|---|---|
| Resolution | 1920×1080 | 3840×2160 | 3840×2160 | 3840×2160 | 3840×2160 |
| Display Area (mm) | 942×530 | 1075×605 | 1210×681 | 1429×804 | 1651×930 |
| LCD Panel Type | IPS | ||||
| Backlight | DLED | ||||
| Speaker | 5W, 8Ω (2 sets) | ||||
| Aspect Ratio | 16:9 | ||||
| Contrast Ratio | 1200:1 | ||||
| Viewing Angle (H/V) | 178°H / 178°V | ||||
| Brightness | 3000 / 700 nits | ||||
| Color Depth | 16.7M | ||||
| Response Time | 6 ms | ||||
| Operation Hour | 24/7 | ||||
| Light Life Time | ≥50000 hours | ||||
| Power Voltage | AC 100~240V, 50Hz/60Hz | ||||
| Power Consumption | 240W | 320W | 390W | 590W | 650W |
| Operating Temperature | 0°C ~ 50°C | ||||
| Operating Humidity | 10% ~ 80% | ||||
| Protection Glass | N/A | ||||
| Dimension (mm) | 1014×562 | 1147×637 | 1282×713 | 1501×836 | 1723×962 |
| Package Size (cm) | 120×25×82 | 133×25×90 | 147×25×97 | 167×24×108 | 188×24×119 |
| Net Weight (kg) | 21 | 33 | 35 | 46 | 56 |
| Gross Weight (kg) | 28 | 41 | 44 | 58 | 70 |
| Screen TNI | 105°C/55°C | 105°C/55°C | 105°C/55°C | 105°C/55°C | 105°C/55°C |
| Android | RK3576 | ||||
| Interface | USB ×2 | RJ45 ×1 | HDMI IN ×1 | ||||
| System Version | Android 14.0 | ||||
| RAM | 4G | ||||
| ROM | 32G | ||||
| Bluetooth | 5.0 | ||||
| WiFi | 2.4G / 5G | ||||
| Option |
Upgrade PC to i3, i5 or i7 Processor Monitor with HDMI input Anti-glare panel |
||||
VM-WHBV4 FAQ
Frequently Asked Questions
Key information for distributors and project partners planning dual-sided window display installations.
Can both sides display different content?
Yes. The WHBV4 supports independent dual-display. Different screen sizes and resolutions may require different motherboard configurations. Please confirm the solution and pricing with our sales team before ordering.
How much clearance is required behind a storefront window?
Maintain a 10–15 cm gap between the display and the storefront glass, with sufficient space above the unit for heat dissipation.
Why do the two sides have different brightness levels?
The outward-facing display delivers 3,000 nits for storefront visibility, while the inward-facing display provides 700 nits for comfortable indoor viewing.
What installation options are available?
The WHBV4 supports arm-kit hanging, wire-rope hanging, fixed floor stands and mobile floor stands. Please confirm your preferred installation method when ordering.
Can the WHBV4 be configured with a PC instead of Android?
Yes. The standard configuration uses the RK3576 Android platform, while Intel Core i3, i5 or i7 PC configurations are available as optional upgrades.
Is an anti-glare panel included?
The standard configuration does not include an anti-glare panel. It can be added as an option. Please confirm the additional cost with our sales team.
