VM-IDKV1

Indoor Digital Kiosk

Interactive. Flexible. Built for Commercial Spaces.

A freestanding indoor digital kiosk designed for retail, wayfinding and commercial information display applications, featuring 2K or 4K display options, 4 mm tempered glass, flexible Android or Windows configurations, and optional touch interaction.

32"–65" Screen Sizes
2K / 4K Resolution Options
Optional Touch Interactive Configuration
4 mm Tempered Glass
Android / Windows OS Options
Free Cloud CMS Content Management
REQUEST A QUOTE
VM-IDKV1 Digital Signage Kiosk

VM-IDKV1 Digital Signage Kiosk

¥0.00
VM-IDKV1 Digital Signage Kiosk
VM-IDKV1 Digital Signage Kiosk
VM-IDKV1 Digital Signage Kiosk
VM-IDKV1 Digital Signage Kiosk
VM-IDKV1 Digital Signage Kiosk
VM-IDKV1 Digital Signage Kiosk

VM-IDKV1 Digital Signage Kiosk

¥0.00

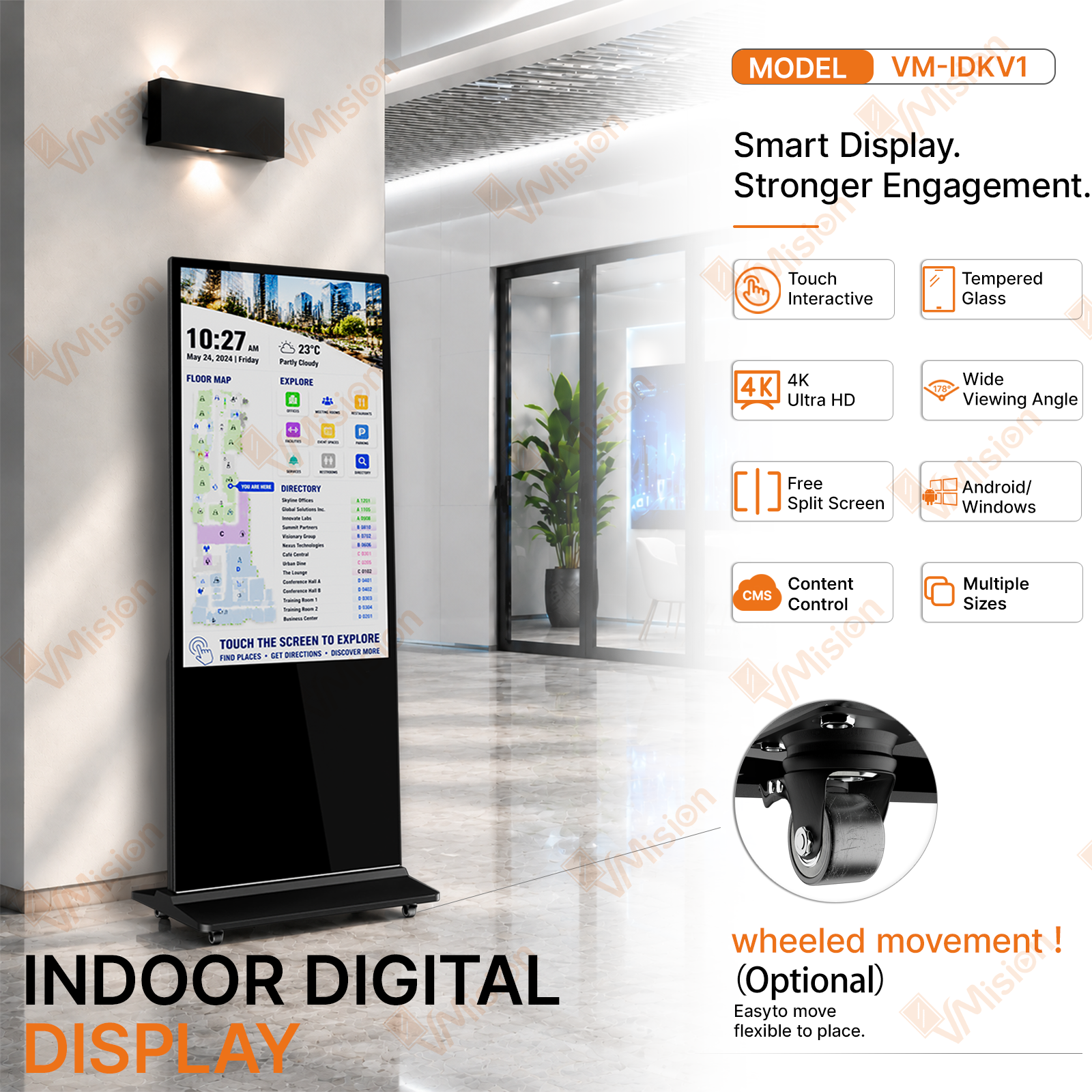

    VM-IDKV1 2K and 4K indoor interactive digital kiosk display

    DISPLAY PERFORMANCE

    Clear Visuals. Better Interaction.

    The VM-IDKV1 supports 2K and 4K display options for clear, detailed content in retail, wayfinding and self-service applications. A 178° viewing angle helps maintain consistent visibility from different positions.

    2K / 4K Resolution Options
    178° Wide Viewing Angle
    HD Image Quality Clear Commercial Content
    32"–65" Multiple Screen Sizes

    SCREEN PROTECTION

    4 mm

    Tempered Glass Protection

    Built for frequent public interaction, the protective glass helps maintain durability, clear visibility and smooth touch performance in everyday commercial environments.

    Scratch Resistant Helps protect the screen from daily wear.
    High Transparency Maintains clear and vivid display visibility.
    Smooth Touch Supports responsive interaction during frequent use.

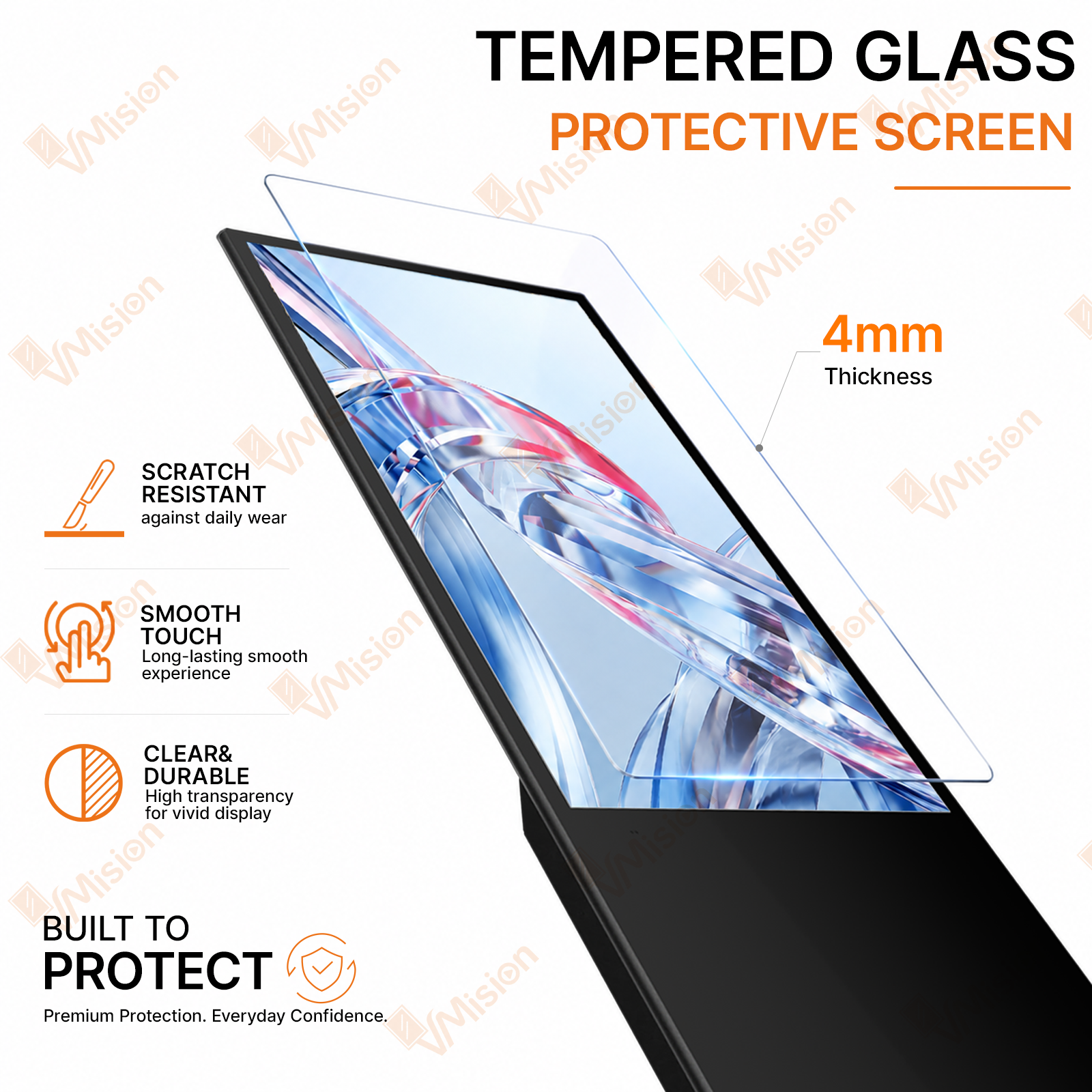

    VM-IDKV1 4 mm tempered glass

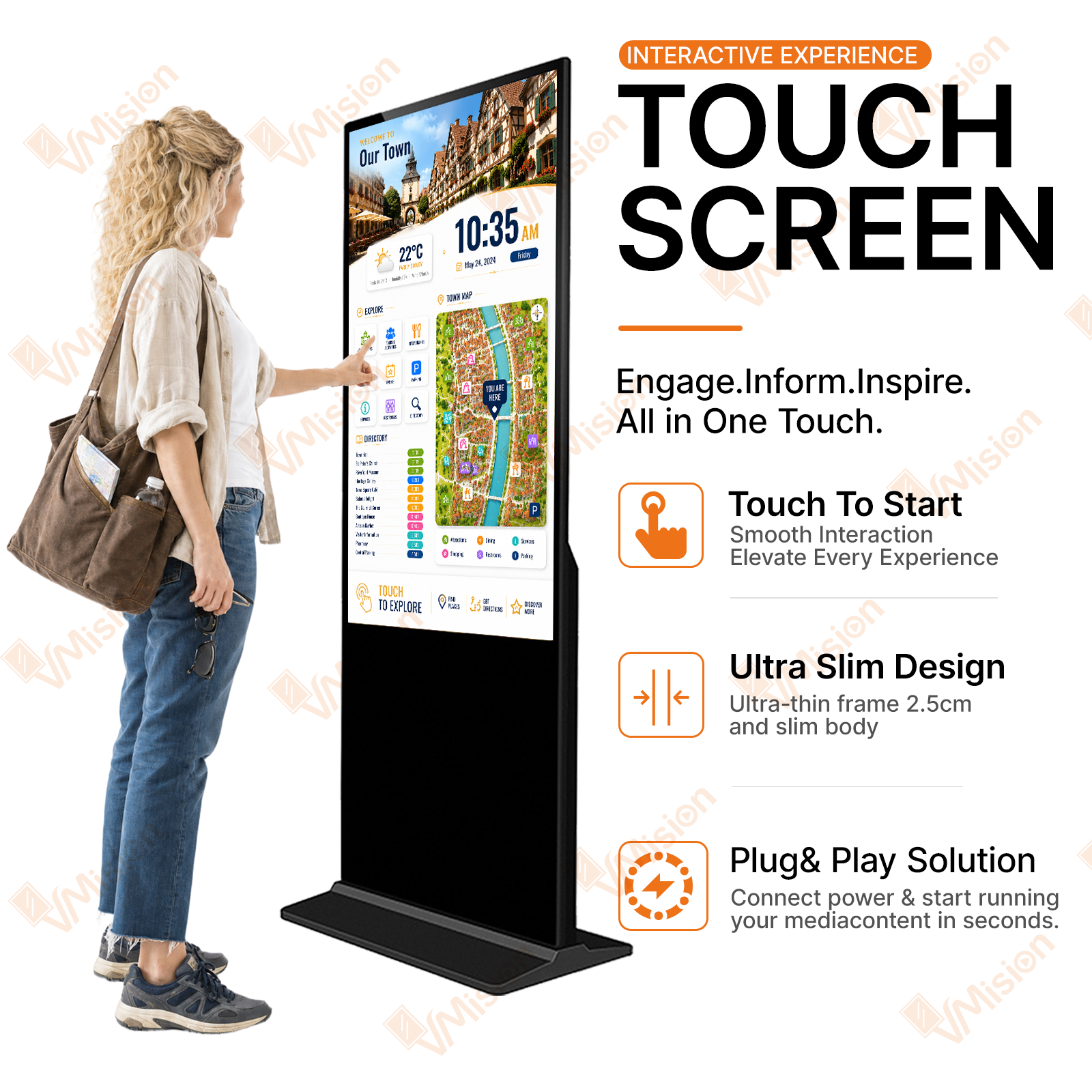

    VM-IDKV1 interactive touch screen kiosk

    INTERACTIVE EXPERIENCE

    Touch. Explore. Engage.

    Turn digital content into an interactive experience for visitors, customers and users across different commercial environments.

    Wayfinding Help visitors quickly find destinations and information.
    Self-Service Support ordering, check-in and information access.
    Product Exploration Let customers browse products and interactive content.

    FREE CLOUD CMS

    Manage Content Remotely.

    Create, publish and schedule content remotely from a phone or computer, making it easier to manage connected displays across different locations.

    01 Create Upload images, videos and promotional content.
    02 Publish Send content remotely to connected displays.
    03 Schedule Set playback according to date and time.
    04 Manage Control multiple displays from one platform.
    VM-IDKV1 free cloud CMS

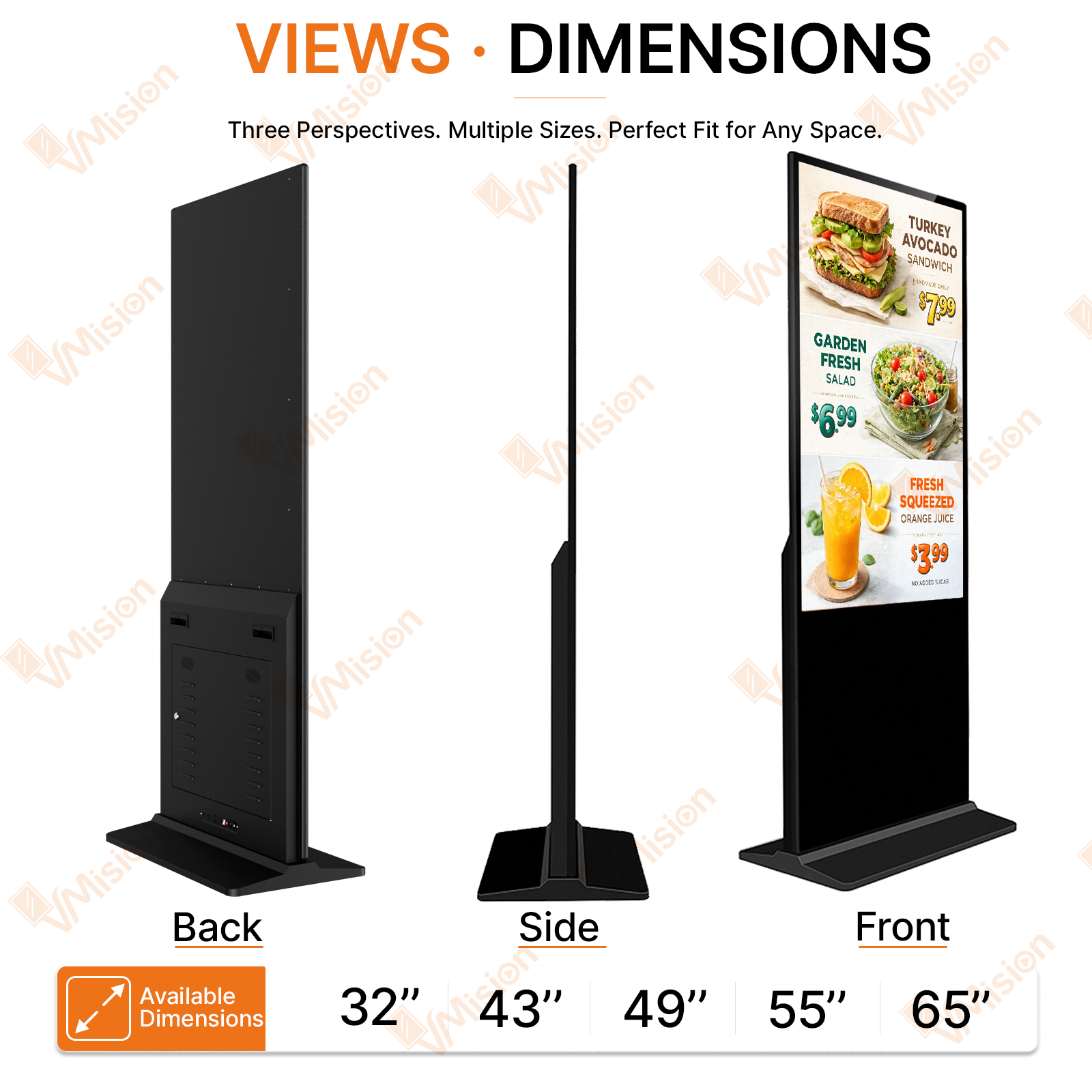

    VM-IDKV1 front side and rear views with multiple screen sizes

    SIZES & PRODUCT DESIGN

    Multiple Sizes for Different Spaces.

    Choose the screen size that fits your project and installation space. The freestanding enclosure is designed for commercial environments, with optional wheels available when easier movement is required.

    32" 43" 49" 55" 65"
    Front View Interactive Display
    Side View Freestanding Profile
    Rear View Service Access
    Optional Wheels Flexible Mobility

    Specification

    Model VM-IDKV1-32 VM-IDKV1-43 VM-IDKV1-49 VM-IDKV1-55 VM-IDKV1-65
    Resolution1920×10801920×10801920×10803840x21603840×2160
    Display Area (mm)394×699528×940604×1074682×1211803×1428
    LCD Panel TypeIPS
    BacklightLED
    Speaker5W, 8Ω (2 sets)
    Aspect Ratio16:9
    Contrast Ratio1200:1
    Viewing Angle (H/V)178°H / 178°V
    Brightness500 nits
    Color Depth16.7M
    Response Time6 ms
    Operation Hour24/7
    Light Life Time≥50000 hours
    Power VoltageAC 100~240V, 50Hz/60Hz
    Power Consumption70W110W155W200W280W
    Operating Temperature0°C ~ 50°C
    Operating Humidity10% ~ 80%
    Protection Class4mm tempered glass
    Screen TNI55°C55°C55°C55°C55°C
    Dimension (mm)461×1700615×1811691×1867747×1960875×2000
    Package Size (cm)176×18×59185×18×73192×18×81202×18×89208×18×102
    Base Package Size (cm)49×47×763×47×770×47×778×47×791×47×7
    Net Weight (kg)3240475771
    Gross Weight (kg)3544536379
    VESA Hole (mm)N/A
    AndroidRK3576
    InterfaceUSB×2  |  RJ45×1  |  HDMI IN×1
    System VersionAndroid 14.0
    RAM4G
    ROM32G
    Bluetooth5.0
    WiFi2.4G / 5G
    Option Upgrade PC to i3, i5 or i7 Processor
    Touch screen
    Monitor only remove Android

    VM-IDKV1 FAQ

    Frequently Asked Questions

    Common questions about software compatibility, content management, customization and commercial operation.

    Can I install my own software or application?

    Yes. The VM-IDKV1 can be configured for your own Android or Windows software. Please provide your software and hardware requirements so we can confirm compatibility before production.

    Can the kiosk work without using VMision's cloud CMS?

    Yes. You can use your own software, third-party CMS or local content playback instead of the VMision cloud CMS.

    Can content continue playing if the internet connection is lost?

    Yes. Once content has been downloaded to the device, it can continue playing locally even if the internet connection is temporarily unavailable.

    Can the hardware configuration be customized for my project?

    Yes. Android hardware, memory, storage and Windows PC configurations can be adjusted according to your software and project requirements.

    Can the kiosk be customized with our logo or branding?

    Yes. OEM branding, logo and appearance customization are available for project and distributor requirements.

    Is the VM-IDKV1 suitable for 24/7 commercial operation?

    Yes. The VM-IDKV1 is designed for continuous 24/7 commercial operation in indoor environments.
