VM-SKV4 Self service kiosk
VMision VM-SKV4 is a versatile self-service kiosk solution designed for restaurants, retail stores, hotels, healthcare facilities and public service applications. Featuring a modular architecture, large touchscreen display and flexible peripheral integration, the VM-SKV4 helps businesses create efficient and interactive self-service experiences.
Designed for OEM projects and commercial deployments, the VM-SKV4 supports optional POS terminals, NFC readers, QR code scanners, printers, cameras and other accessories to meet different application requirements. With Android and Windows system options, the kiosk provides flexible software integration and reliable 24/7 operation for global distributors, system integrators and solution providers.Size :15.6“ 21.5” 23.8"
● 500 nits brightness
● Anti-glare glass
● FHD display
● Android and windows option
● PCAP touch
● Customized color and logo
● Modular design
● HD camera
● NFC
● QR code scanning
● 80mm printer
● POS terminal
● Designed for 24/7 operation with a lifespan of over 50,000 hours
Self Service Kiosk.
Smart. Fast. Simple. Power Every Interaction.
The VM-SKV4 is a fully modular self-service terminal designed to maximise efficiency across retail, restaurant, hospitality, and public service environments. Configure exactly the modules your business needs — nothing more, nothing less.
Stable Performance — 24/7 commercial-grade operation
Secure Data Protection — enterprise-level security built in
7×24 Support — expert assistance around the clock
Improve Customer Experience — faster service, less waiting

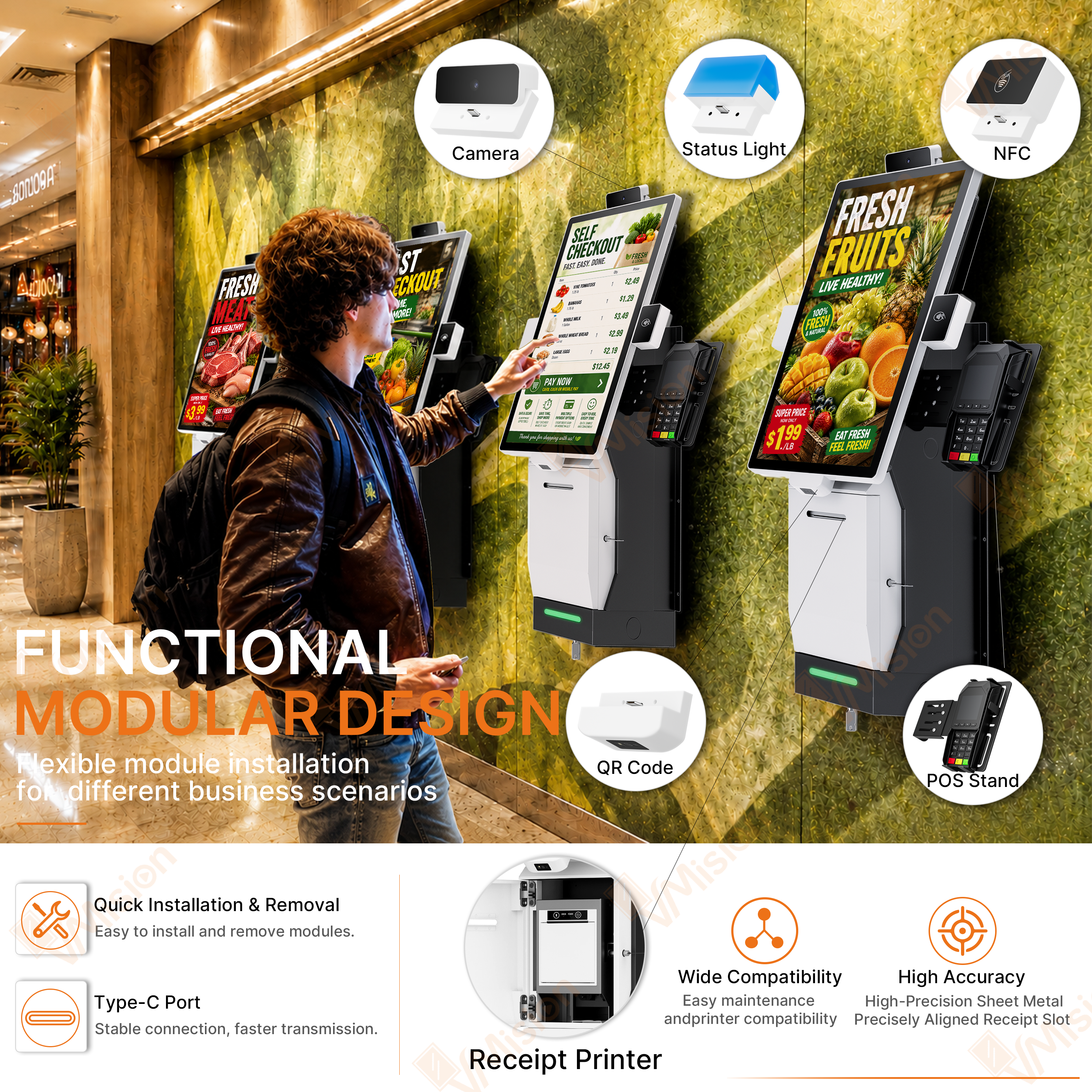

Flexible Modules.
Every Business Scenario.
Flexible module installation for different business scenarios.
Five snap-in peripherals let you configure the VM-SKV4 exactly for your use case. Add or remove modules without tools — camera for facial ID, NFC for contactless payment, QR for mobile scans, POS stand for card terminals, and status light for queue management.
Easy to install and remove modules
Stable connection, faster data transmission.
Easy maintenance and printer compatibility.
Precision sheet metal — precisely aligned receipt slot.

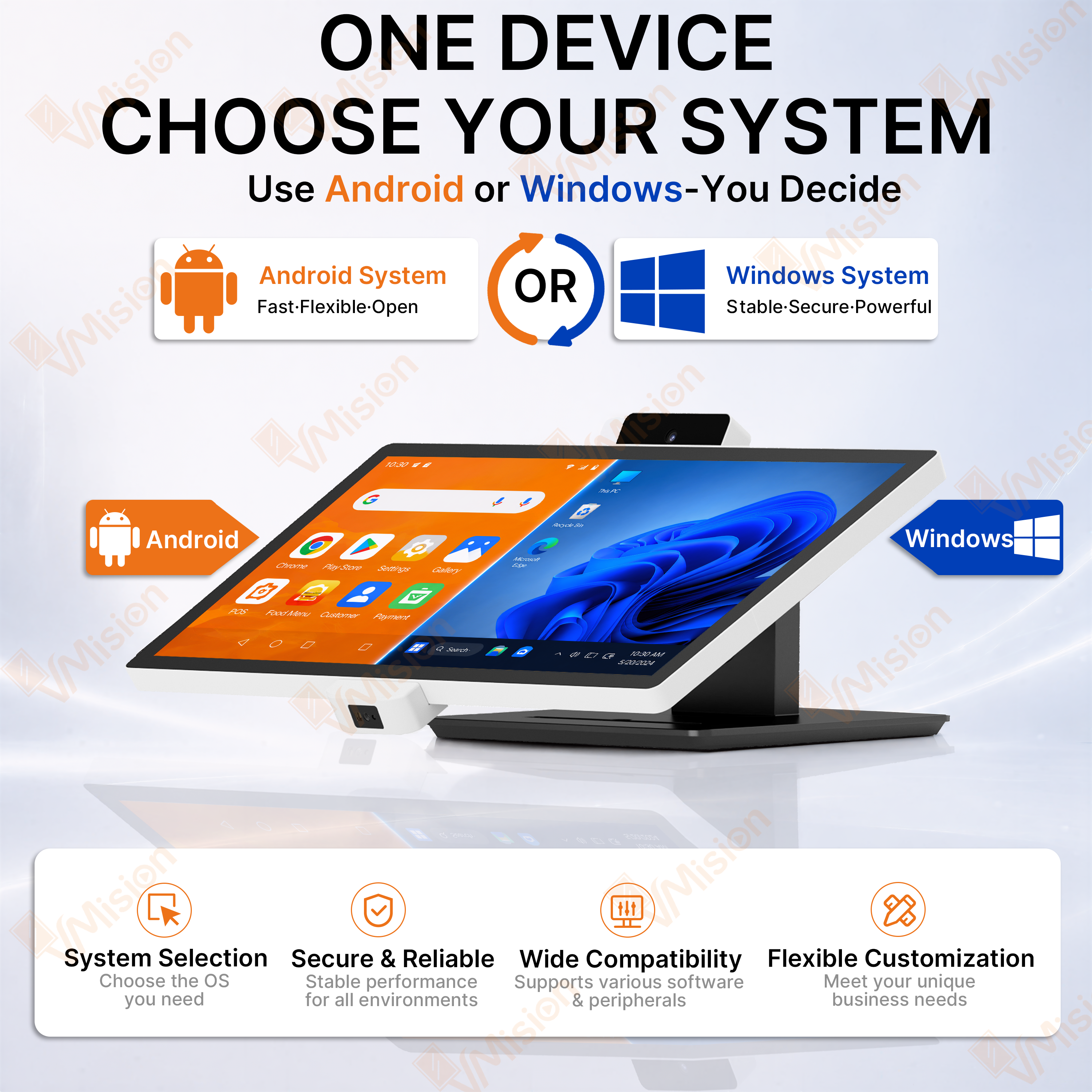

Choose Your
Operating System.
Use Android or Windows — You Decide.
The VM-SKV4 is available with Android or Windows pre-installed, so you choose the OS that matches your existing software ecosystem — no compromise required. Upgrade or switch systems without replacing hardware.
Choose the OS you need — Android or Windows.
Stable performance for all commercial environments.
Supports various software and peripherals.
Meet your unique business needs.

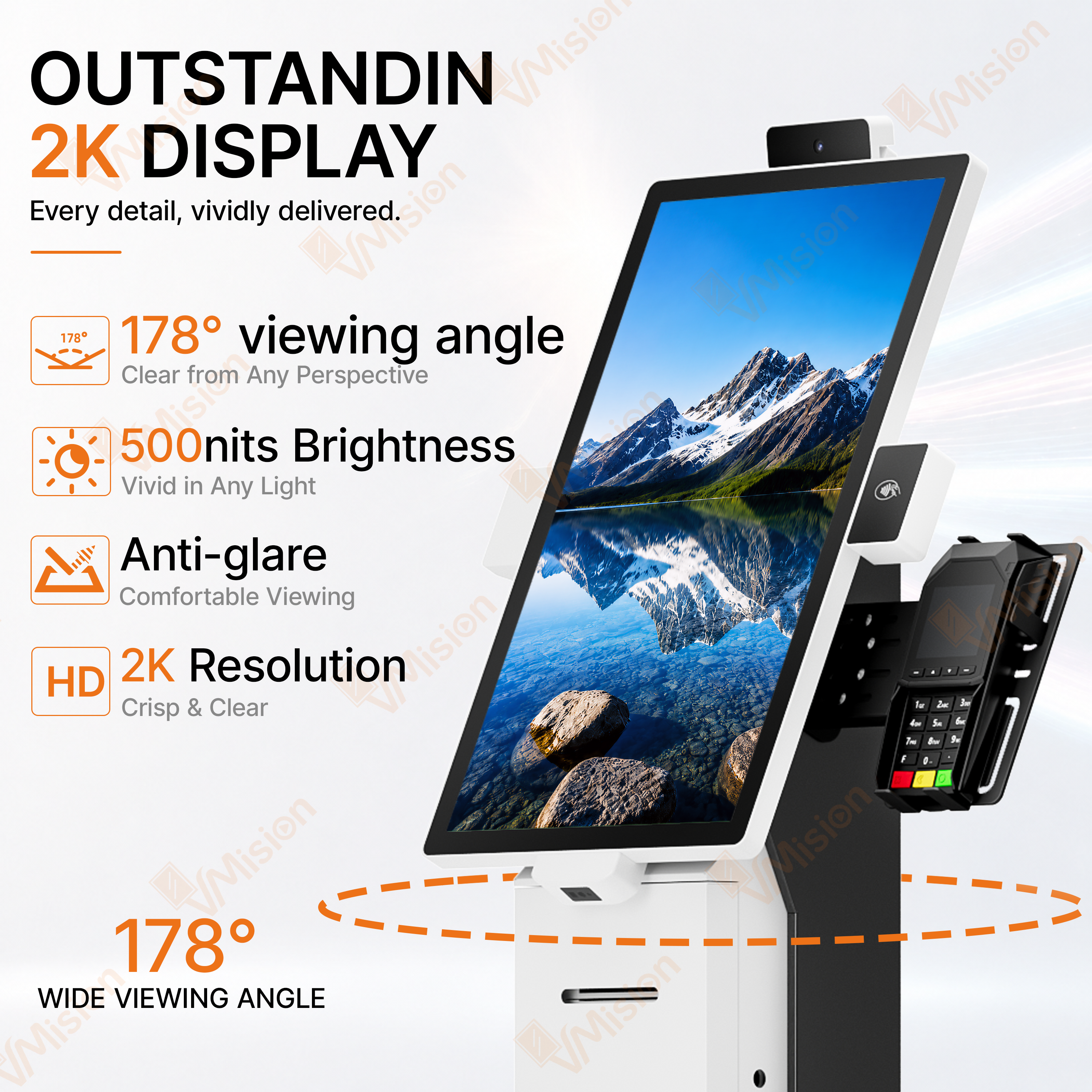

2K HD Display.
Every Detail, Vividly Delivered.
178° Wide Angle · 500 Nits · Anti-Glare.
The VM-SKV4 features a 2K high-definition display optimised for close-range self-service interaction — with 500 nits of brightness, anti-glare glass coating, and a 178° ultra-wide viewing angle so every customer sees content clearly from any position.
Glass-to-glass capacitive touch with seamless tracking and refined control — precise response for transactional self-service at any touch point.
The AG anti-glare coating reduces reflections from overhead lighting — customers read content comfortably without squinting or repositioning.

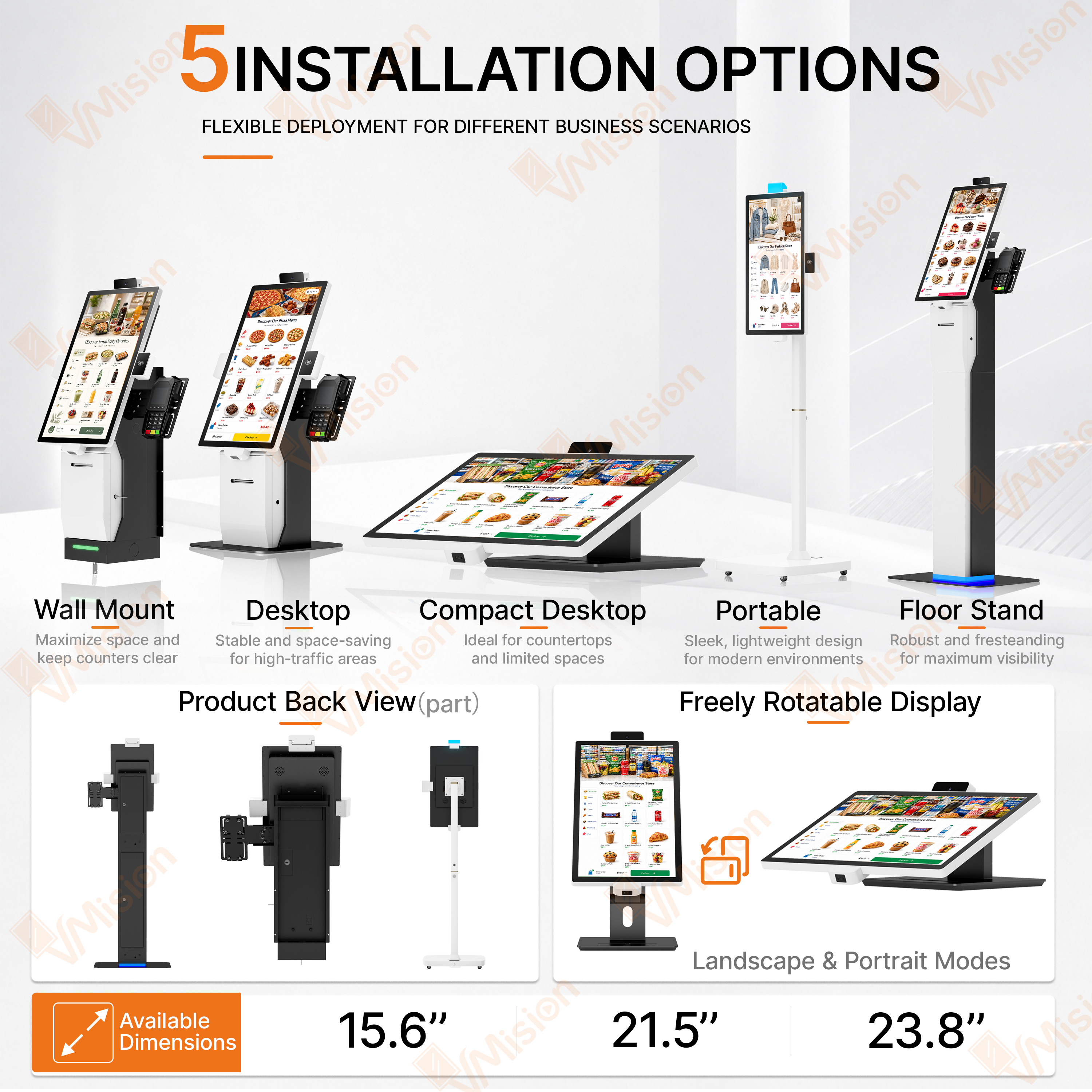

5 Ways to Deploy.
1 Device. Any Space.
Flexible deployment for different business scenarios.
Wall mount it to save counter space, sit it on a desktop, stand it on a compact pedestal, carry it as a portable unit, or deploy it as a full floor stand for maximum visibility — the VM-SKV4 adapts to every environment. In addition, its display screen can support both landscape and portrait modes.
Maximise space and keep counters clear.
Space-saving — ideal for high-traffic counters and limited spaces.
Compact Desktop, supports display adjustment at various angles.
Sleek, lightweight design for modern event and retail environments.
Robust and free-standing for maximum visibility in open spaces.

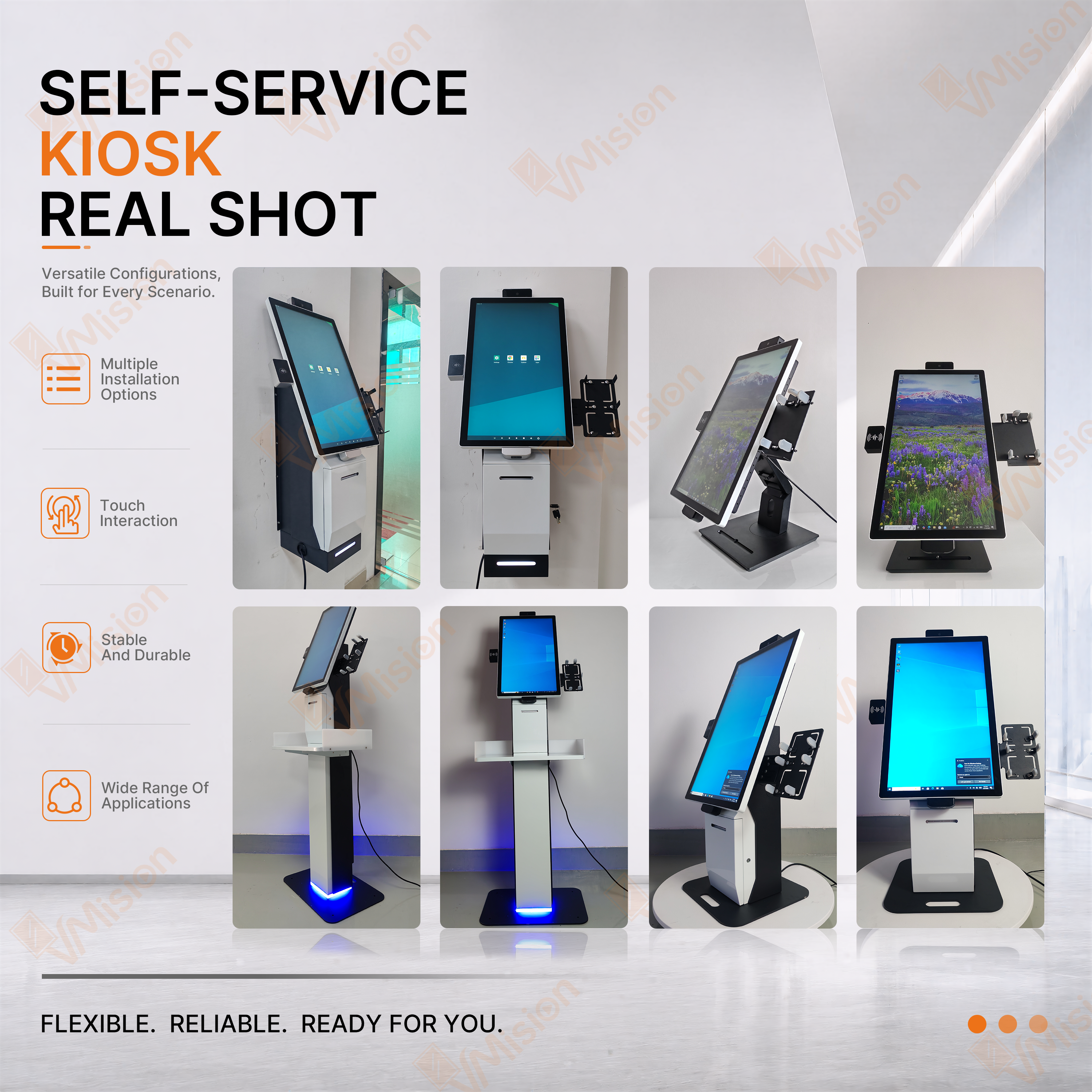

Versatile Configurations.
Built for Every Scenario.
Flexible. Reliable. Ready for You.
Every VM-SKV4 you see in the real shot photos started as a standard base unit — then configured with the exact modules, orientation, and mounting type required for that deployment. This is what "modular" really means in practice.
Wall mount, desktop, portable, or floor stand — same device, different deployment. No extra hardware needed.
PCAP multi-touch response across all configurations — smooth, accurate, and responsive for every customer interaction.
50,000+ hours commercial lifespan — 24/7 operational stability designed for the busiest retail and transit environments.
Retail check-out, restaurant ordering, hospital registration, event ticketing, corporate reception — one platform, many solutions.
Specification
| Model | VM-SKV4-15.6 | VM-SKV4-21.5 | VM-SKV4-23.8 |
|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 |
| Display Area (mm) | 194.5×345.3 | 477.2×268.7 | 296.5×527 |
| LCD Panel Type | IPS | ||
| Backlight | LED | ||
| Speaker | 5W, 4Ω (2 sets) | ||
| Aspect ratio | 16:9 | ||
| Contrast Ratio | 4000:1 | ||
| Viewing Angle (H/V) | 178°H / 178°V | ||
| Brightness | 500 nits | ||
| Color Depth | 16.7M | ||
| Response Time | 6 ms | ||
| Operation Hour | 24/7 | ||
| Light Life Time | ≥50000 hours | ||
| Power Voltage | AC 100~240V, 50Hz/60Hz | ||
| Power Consumption | 25W | 40W | 45W |
| Operating Temperature | 0°C ~ 55°C | ||
| Operating Humidity | 10% ~ 90% | ||
| Protection Glass | AG tempered glass | ||
| Dimension (mm) | 1513×540×370 | 1571×540×370 | 1627×540×370 |
| Package Size (cm) | 94×62×49 | 95×65×55 | 99×61×56 |
| Net Weight (kg) | 28 | 30 | 32 |
| Gross Weight (kg) | 32 | 33 | 36 |
| Touch solutions | 10 Point PCAP touch | ||
| Android | RK 3568 | ||
| System version | Android 11.0 | ||
| RAM | 4G | ||
| ROM | 32G | ||
| Option |
Upgrade PC to i3, i5 or i7 Processor 80mm Printer QR code Camera Status light POS stand NFC |
||
