VM-IDV2
23 mm Ultra-Thin Wall-Mounted Digital Signage
Ultra-thin. Seamlessly integrated.
The VM-IDV2 is a 23 mm ultra-thin digital signage display designed for modern commercial interiors. Its 10 mm bezel and zero-gap wall mounting create a clean, integrated look, with portrait or landscape installation and optional Android or Windows configurations.
27", 32", 43", 49", 55"
Screen Sizes
700 nits
Brightness
2K / 4K
Resolution Options
23 mm
Ultra-Thin Profile
178°
Viewing Angle
Zero-Gap
Flush Wall Mount

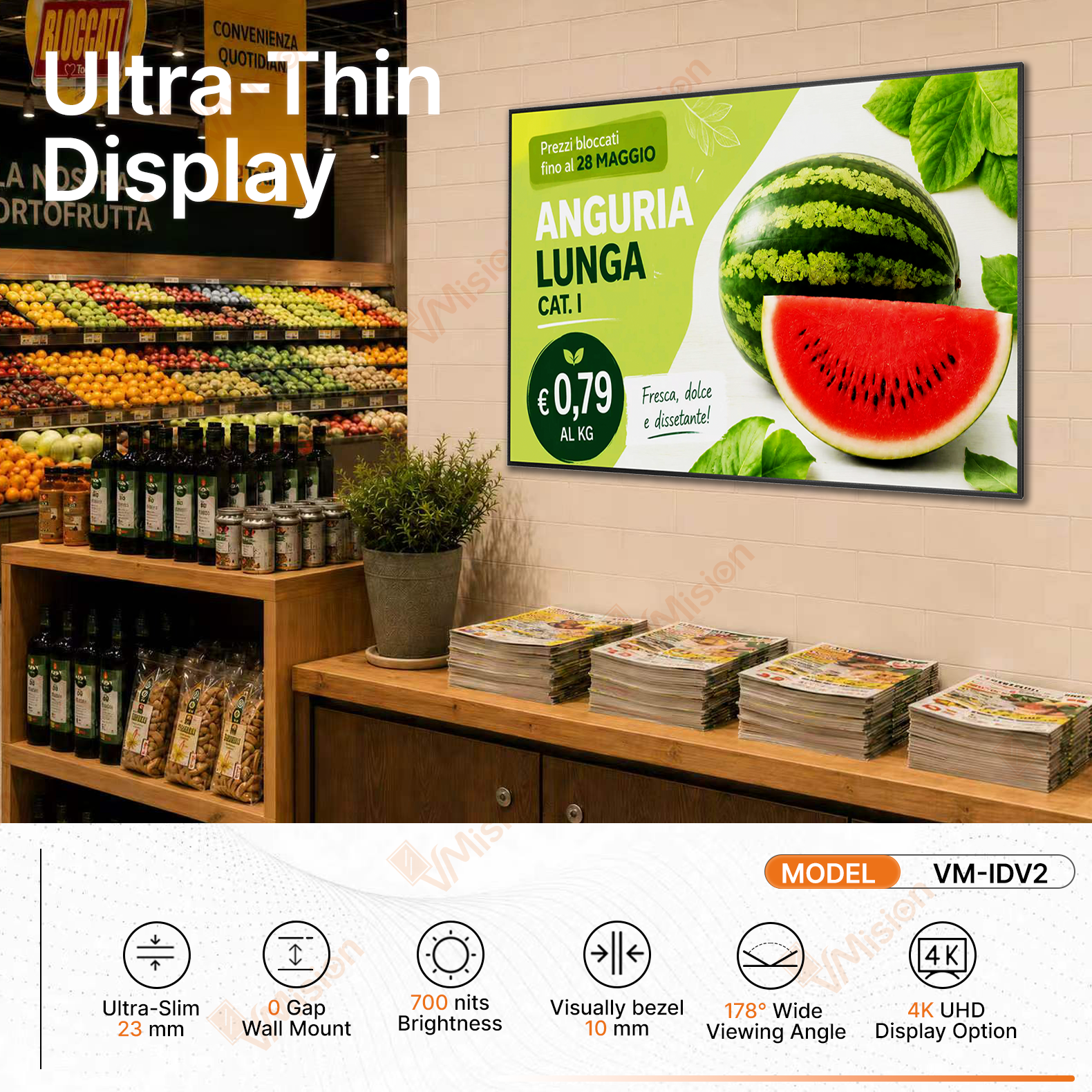

Indoor Digital Signage
Ultra-Thin Display for Modern Commercial Spaces
Designed for retail stores, supermarkets, restaurants and hospitality interiors, the VM-IDV2 presents menus, promotions and branded content on a slim wall-mounted display. Its 23mm profile and flush-fit installation help integrate digital messaging neatly into modern commercial spaces.

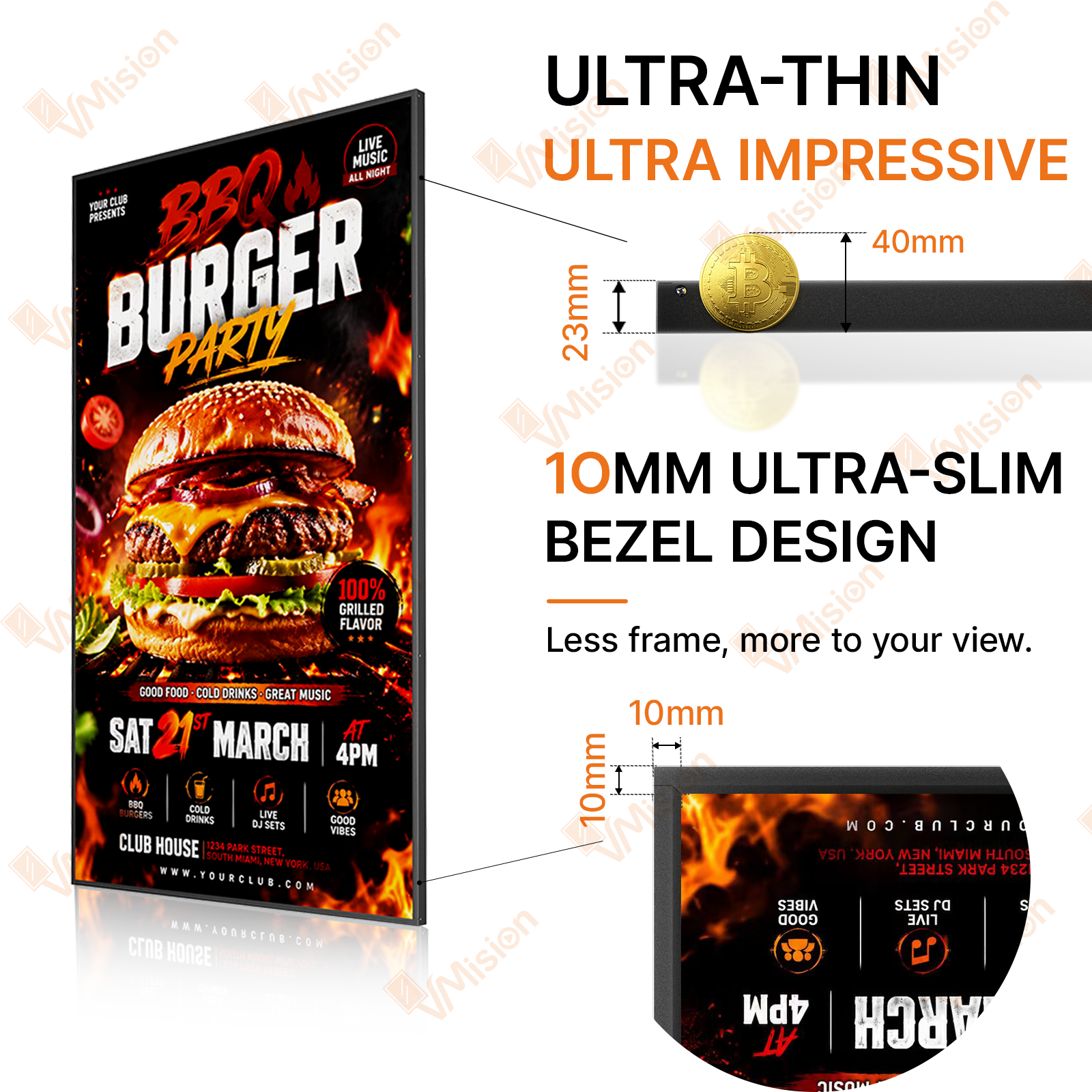

Ultra-Thin Design
Less Frame. More to See.
A visually slim 10mm bezel gives on-screen content a clean, modern presentation, while the 23mm ultra-thin profile keeps the display discreet. The refined design is suited to commercial interiors where both screen content and surrounding architecture matter.

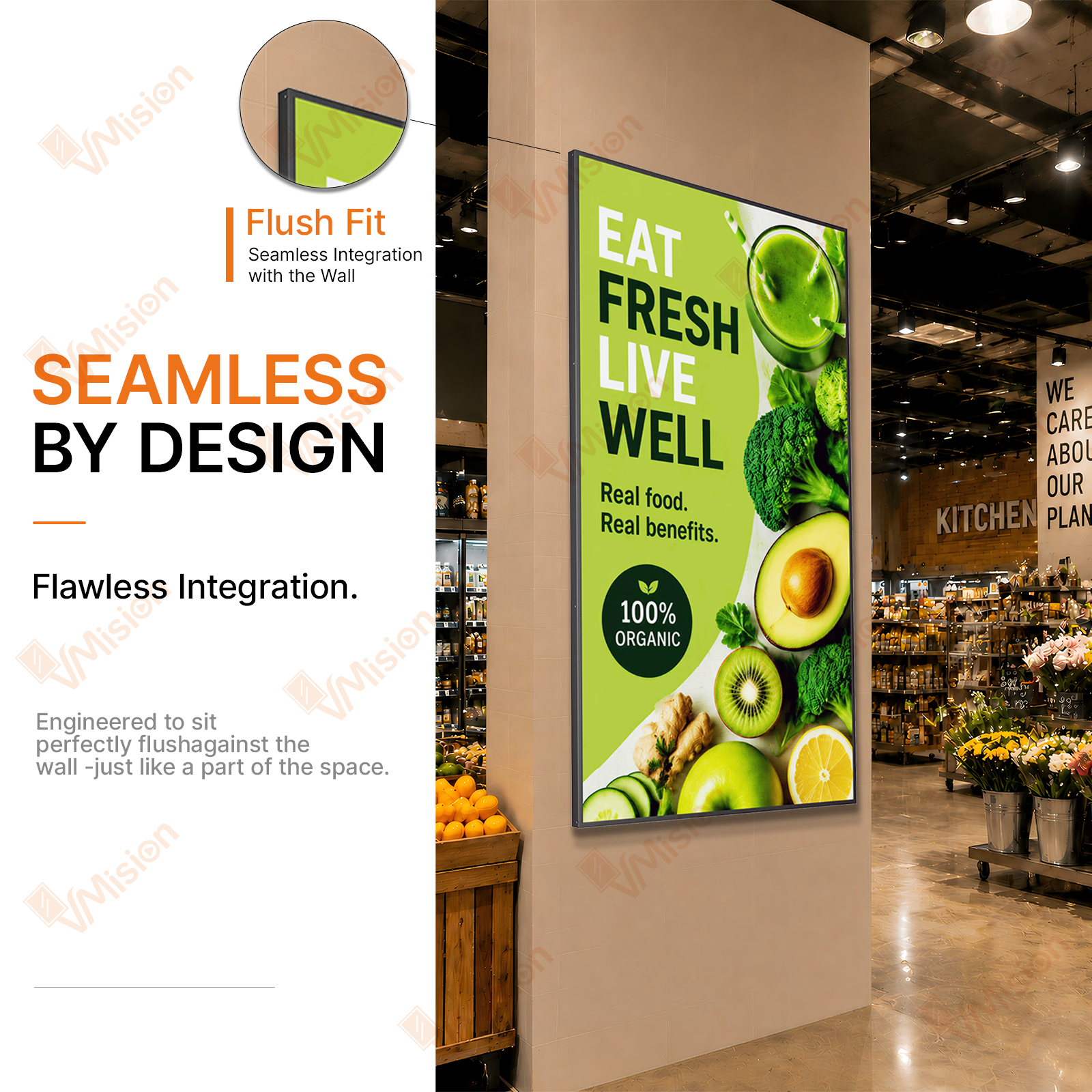

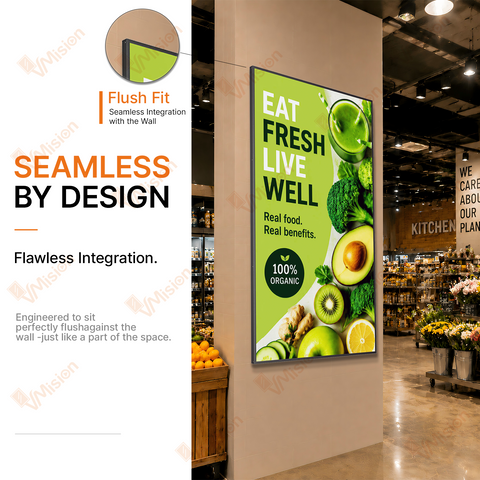

Flush Wall Installation
Seamless by Design
Designed for zero-gap wall mounting, the VM-IDV2 sits close to the wall for a clean, integrated finish. Its slim profile helps digital signage feel like a natural part of the interior, making it suitable for retail, hospitality and other modern commercial environments.

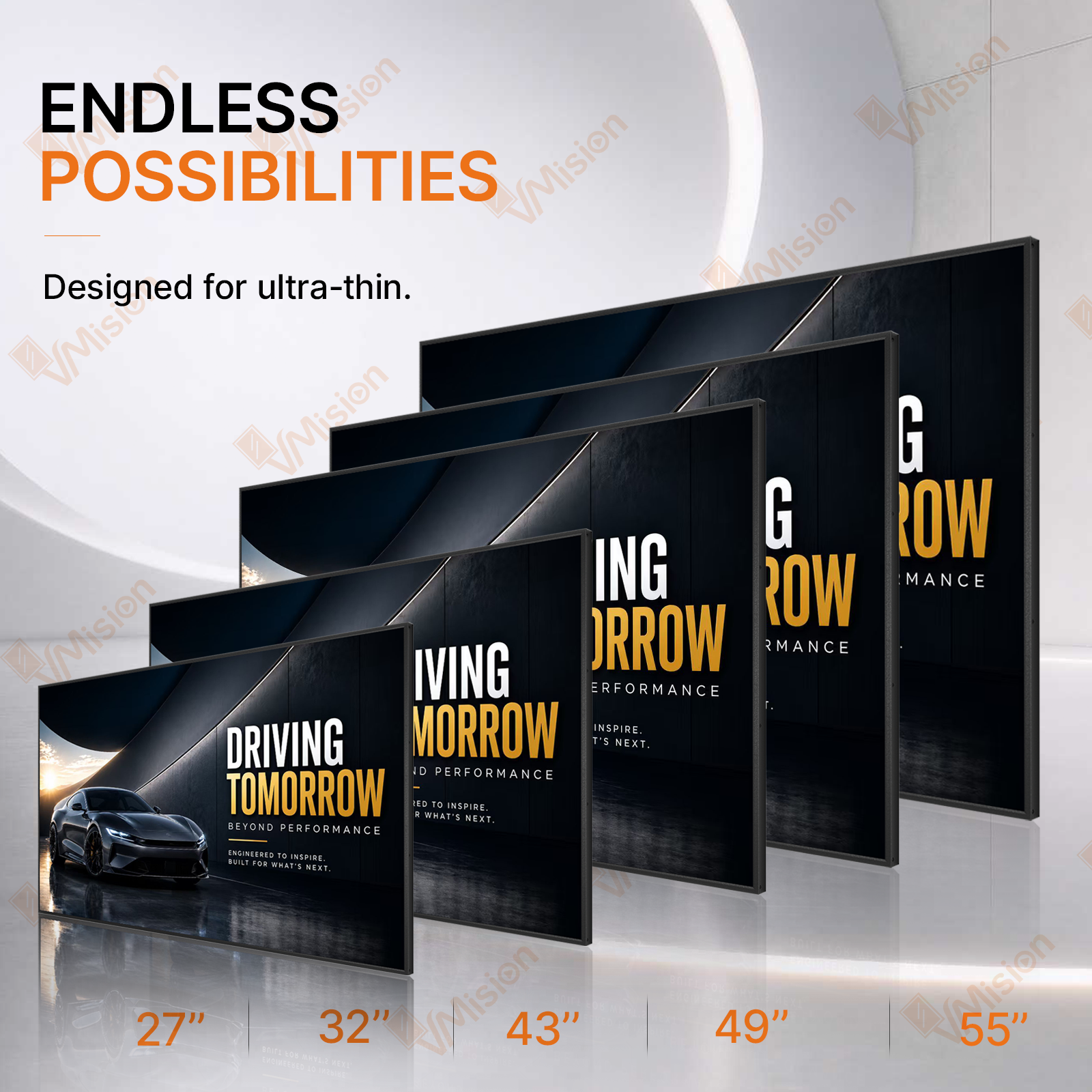

Flexible Size Options
One Slim Design. Five Screen Sizes.
Available in 27", 32", 43", 49" and 55" sizes, the VM-IDV2 offers flexible options for retail displays, digital menus and indoor advertising. FHD and 4K UHD resolution options vary by model to suit different content and project requirements.
Free Cloud CMS
Manage Your Displays Remotely
Update digital signage content from a mobile device or computer through the cloud-based CMS. Manage individual displays or groups, check device online status and schedule playback to simplify day-to-day content management across commercial locations.

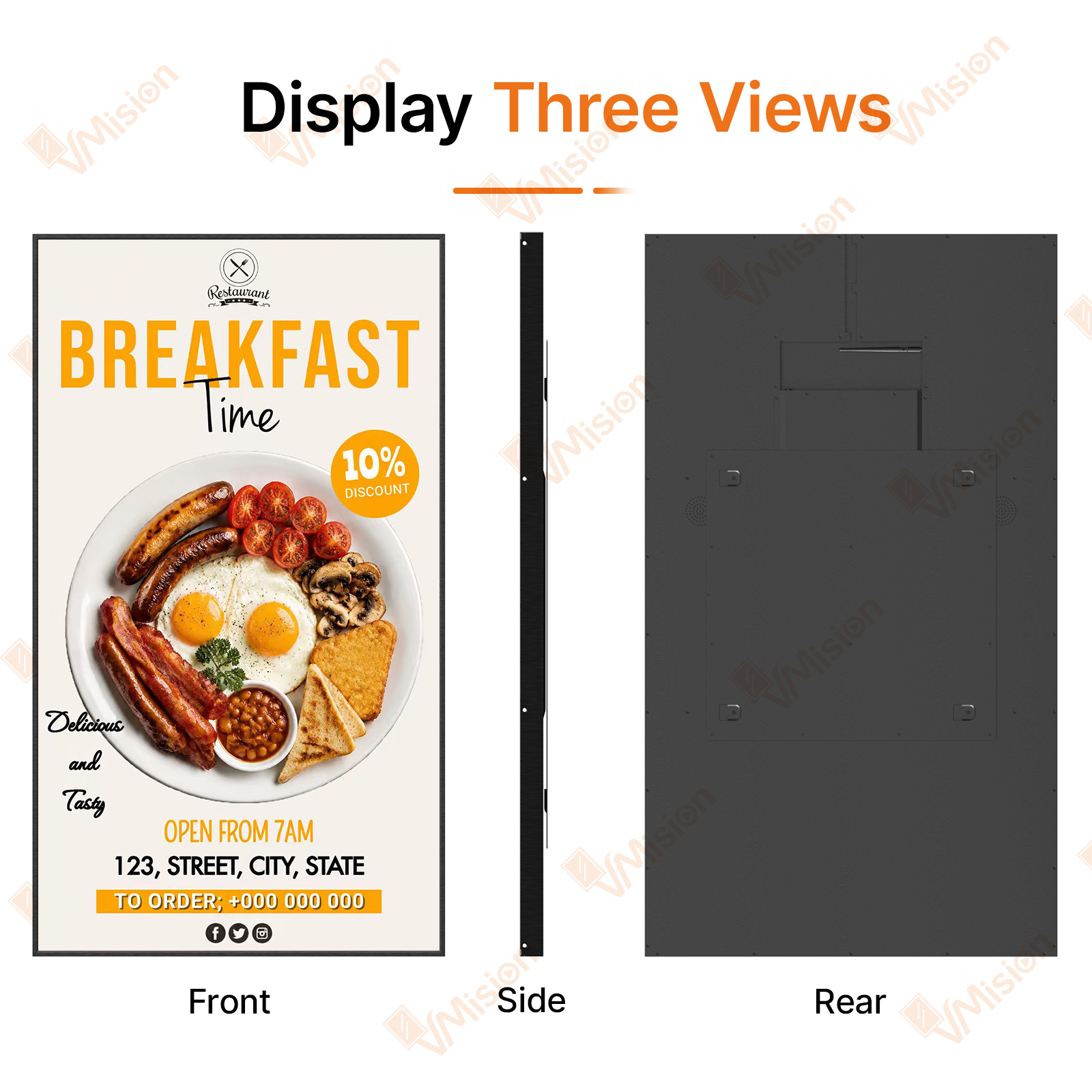

Product Design
A Clear View of Every Detail
Explore the front, side and rear views of the VM-IDV2 to understand its slim profile, screen design and rear housing layout. The clean, low-profile construction supports a neat installation in commercial interiors.

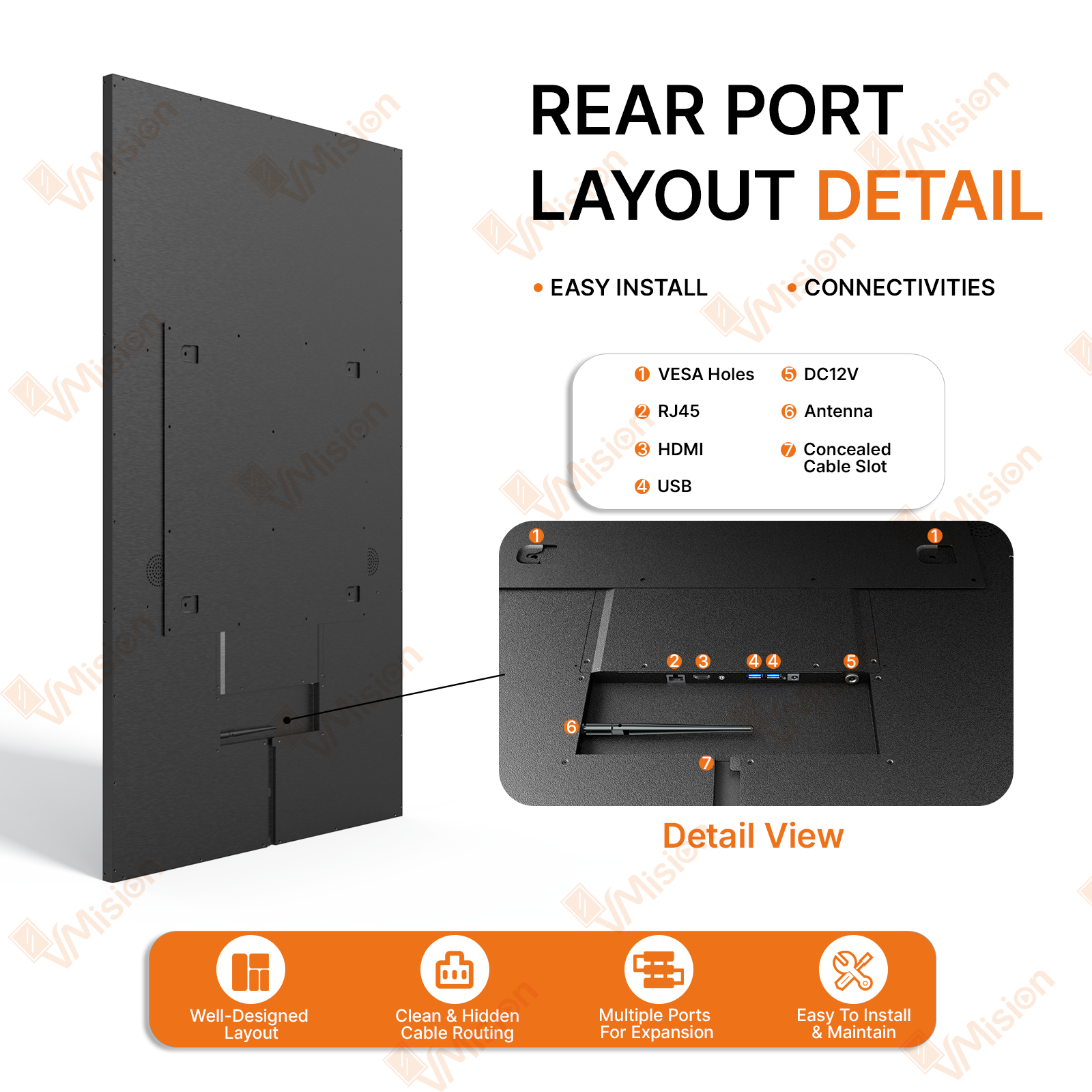

Design & Connectivity
Practical Connections. Clean Installation.
The rear layout brings key connections and mounting details together for a practical installation. Essential interfaces include USB, RJ45 and HDMI, with DC12V power, antenna access, VESA mounting holes and a concealed cable slot to help keep the installation tidy.
Designed to blend in.
Built to stand out.
From retail stores and fitness centers to healthcare facilities and supermarkets, the VM-IDV2 delivers vivid digital content through an ultra-slim 23 mm profile that fits naturally into modern indoor spaces.
Specification
| Model | VM-IDV2-27 | VM-IDV2-32 | VM-IDV2-43 | VM-IDV2-49 | VM-IDV2-55 |
|---|---|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 |
| Display Area (mm) | 598×336 | 703×397 | 942×530 | 1075×605 | 1210×681 |
| LCD Panel Type | IPS | ||||
| Backlight | LED | ||||
| Speaker | 5W, 8Ω (2 sets) | ||||
| Aspect Ratio | 16:9 | ||||
| Contrast Ratio | 1200:1 | ||||
| Viewing Angle (H/V) | 178°H / 178°V | ||||
| Brightness | 700 nits | ||||
| Color Depth | 16.7M | ||||
| Response Time | 6 ms | ||||
| Operation Hour | 24/7 | ||||
| Light Life Time | ≥50000 hours | ||||
| Power Voltage | AC 100~240V, 50Hz/60Hz | ||||
| Power Consumption | 33W | 43W | 53W | 85W | 114W |
| Operating Temperature | 0°C ~ 50°C | ||||
| Operating Humidity | 10% ~ 80% | ||||
| Protection Class | N/A | ||||
| Screen TNI | 55°C | 55°C | 55°C | 55°C | 55°C |
| Dimension (mm) | 621.4×360 | 723×417.5 | 965.8×554 | 1098.3×628.6 | 1234.2×705 |
| Package Size (cm) | 78×20×52 | 89×20×58 | 113×20×71 | 127×20×78 | 140×20×86 |
| Net Weight (kg) | 5 | 8 | 15 | 16 | 17.3 |
| Gross Weight (kg) | 8 | 9.8 | 19 | 20 | 21.5 |
| VESA Hole (mm) | 200×200 | 200×200 | 400×400 | 400×400 | 400×400 |
| Android | RK3576 | ||||
| Interface | USB×2 | RJ45×1 | HDMI IN×1 | ||||
| System Version | Android 14.0 | ||||
| RAM | 4G | ||||
| ROM | 32G | ||||
| Bluetooth | 5.0 | ||||
| WiFi | 2.4G / 5G | ||||
| Option |
Upgrade PC to i3, i5 or i7 Processor Anti-glare panel Monitor only remove Android |
||||
VM-IDV2 FAQ
Frequently Asked Questions
Important details about installation, optional features and product customization to help you specify the right display for your project.
How slim is the VM-IDV2 after wall mounting?
The display itself is 23mm thick and comes with an ultra-slim wall-mount bracket designed for a close, flush fit. Once installed, the overall depth is approximately 26mm. A concealed cable channel at the rear keeps wiring out of sight for a clean, seamless appearance.
Can protective tempered glass be added?
The standard VM-IDV2 does not include protective tempered glass. It can be added as an optional customization for projects requiring additional front-screen protection. With this option, the display thickness increases to approximately 31mm. The minimum order quantity is 20 units.
Can the VM-IDV2 be configured with touchscreen functionality?
The standard VM-IDV2 is a non-touch display. For projects requiring interactive functionality, an optional touch-enabled tempered glass panel can be added. With this customization, the display thickness increases to approximately 31mm. Please contact our sales team to confirm the available configuration and order requirements.
Can an anti-glare option be added?
The standard VM-IDV2 does not include anti-glare treatment. An anti-glare option can be requested for projects that require reduced screen reflections. This customization involves an additional cost, which our sales team can confirm based on the required configuration.
Can the VM-IDV2 be customized for OEM projects?
VMision can discuss OEM and private-label requirements for distributor projects. Available customization options, minimum order quantities and lead times depend on the requested configuration and order volume. Contact our sales team to discuss your branding and project requirements.
Can I source different sizes and configurations for different projects?
The VM-IDV2 is available in 27", 32", 43", 49" and 55" sizes. Resolution, operating system and optional features may vary by model. Our sales team can help confirm the appropriate configuration, availability and order requirements for each project.
