VM-WHBV2 Double-sided Hanging Digital Signage
Window double-sided hanging screen advertising display equipment digital signage and FHD LCD display
Size : 43" 55"
● 700/700 nit brightness
● Ultra-thin design
● FHD screen
● Windows and Android option
● Designed for 24/7 operation with a lifespan of over 50,000 hours
● Free CMS system/digital signage application
● Customized color and logo
● Double-sided same display/different display

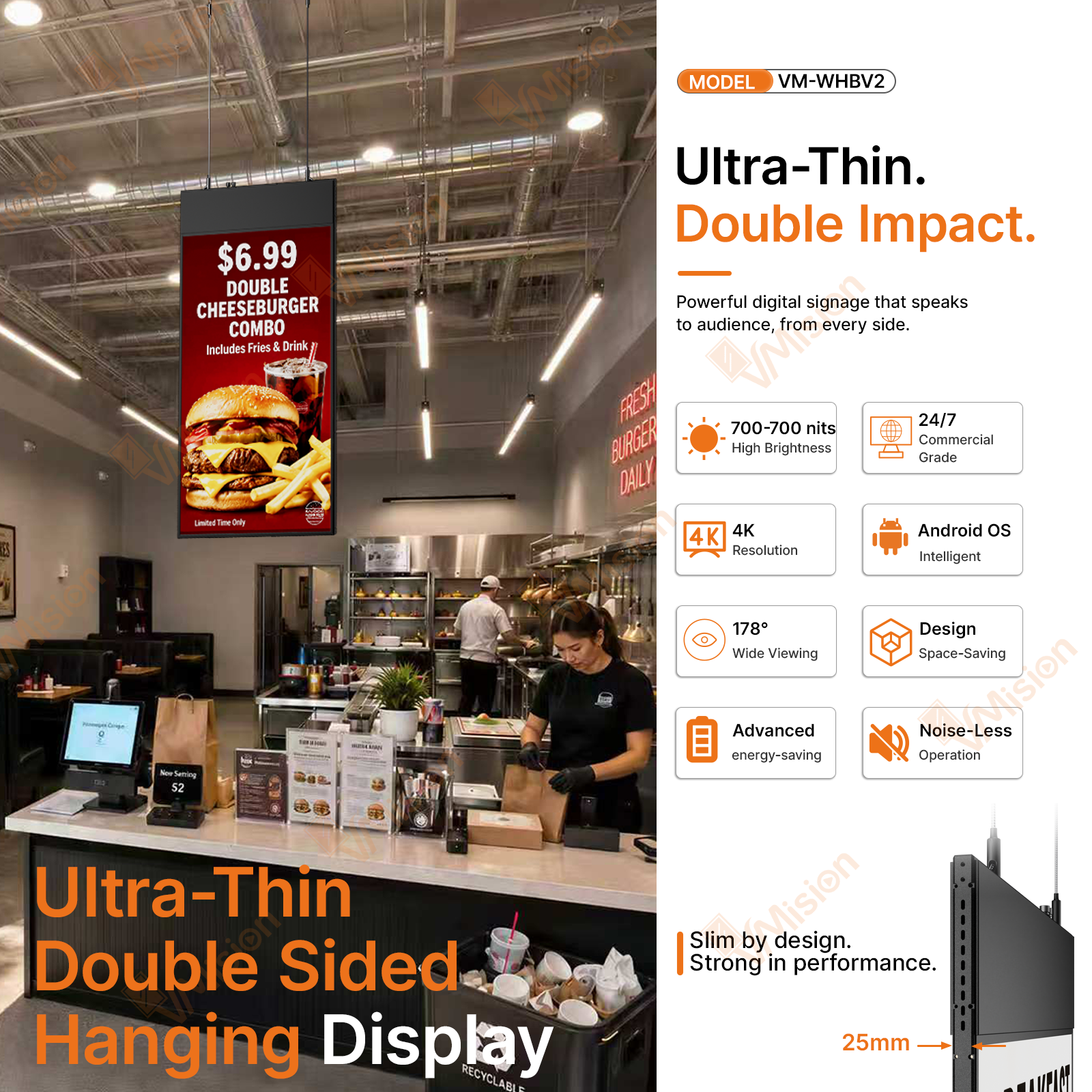

Ultra-Thin.
Double Impact.
Powerful digital signage that speaks to your audience from every side. At just 25mm slim — one display, two screens, twice the reach.
Slim by design. Strong in performance.
4K Ultra HD.
IPS Panel. 700 Nits.
Stunning clarity. Immersive detail. Superior color.
Triple performance stack — 4K resolution, IPS panel technology, and 700 nits high brightness — delivering the most vivid commercial display experience in a hanging format.
Four times the detail of Full HD. Every image, video, and menu graphic is rendered with stunning clarity your customers will stop and notice.
Wide viewing angle, accurate color reproduction, and an anti-glare option — IPS technology ensures superior performance from every angle in your venue.
700 nits of commercial-grade brightness per screen — visible and vivid even under direct overhead lighting in bright retail and food service environments.
Double-Sided.
Independent Playback.
Different content on each side.
One display. Two independent screens. Run completely different campaigns simultaneously — front and back — maximising your advertising reach without doubling your hardware cost.
Run your primary promotion or brand campaign on the front screen facing incoming customers.
Simultaneously run a different upsell or seasonal campaign on the back screen for outgoing customers.
Different content on each side.
Vivid colors and sharp visuals.
Set different time periods per side.
(Custom single-sided option available)

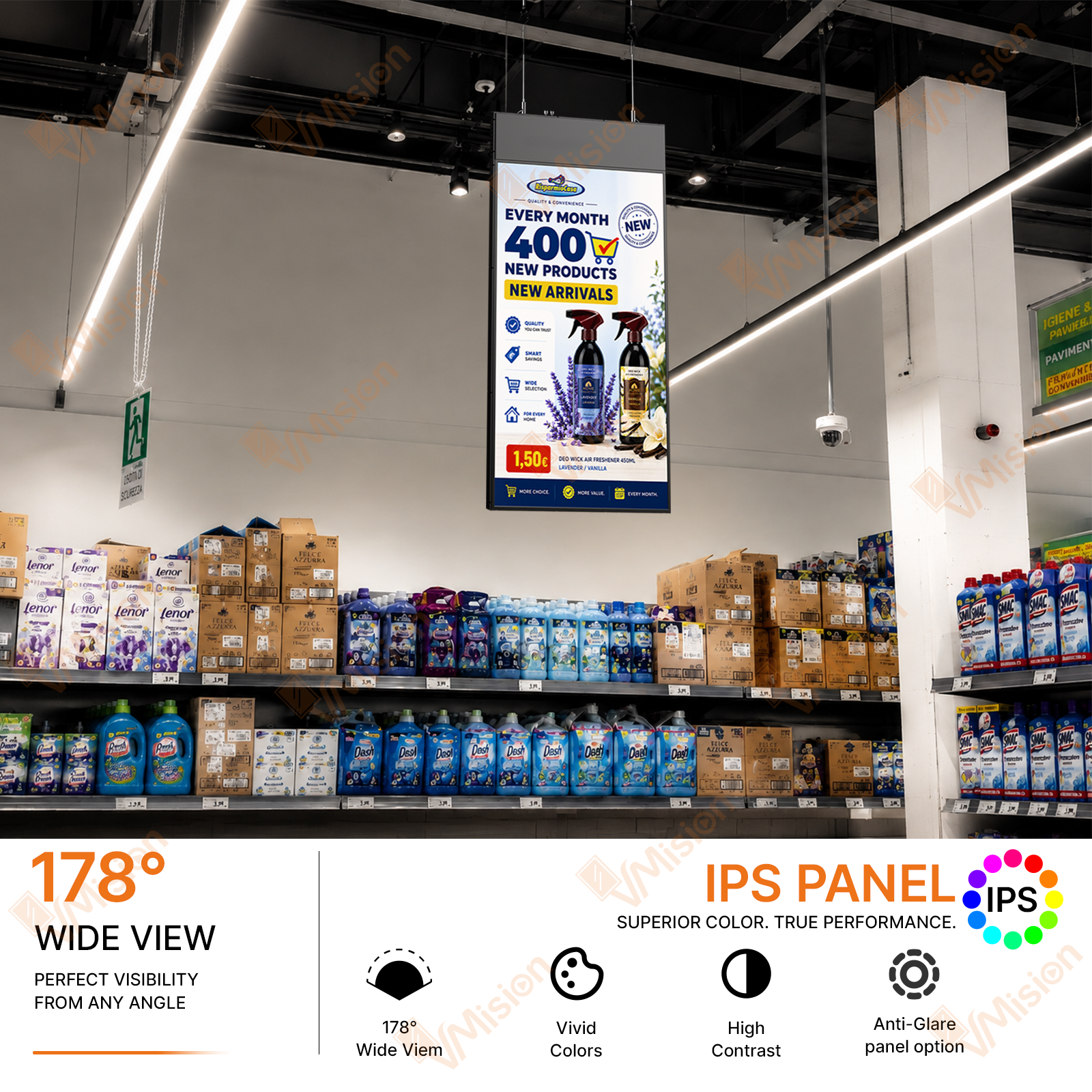

178° Wide View.
IPS Panel.
Superior Color. True Performance.
Perfect visibility from any angle — whether your customers are walking past, standing below, or viewing from the side. The IPS panel ensures every viewer sees the same vivid, accurate image.
No dead zones. No colour shift. Every shopper, from every direction, sees your content exactly as intended.
16.7M color depth with a 1200:1 contrast ratio — your promotions look as vibrant in-store as they do on your design screen.
Available with an anti-glare coating — ideal for brightly lit retail, food service, or supermarket environments where overhead lighting creates reflections.

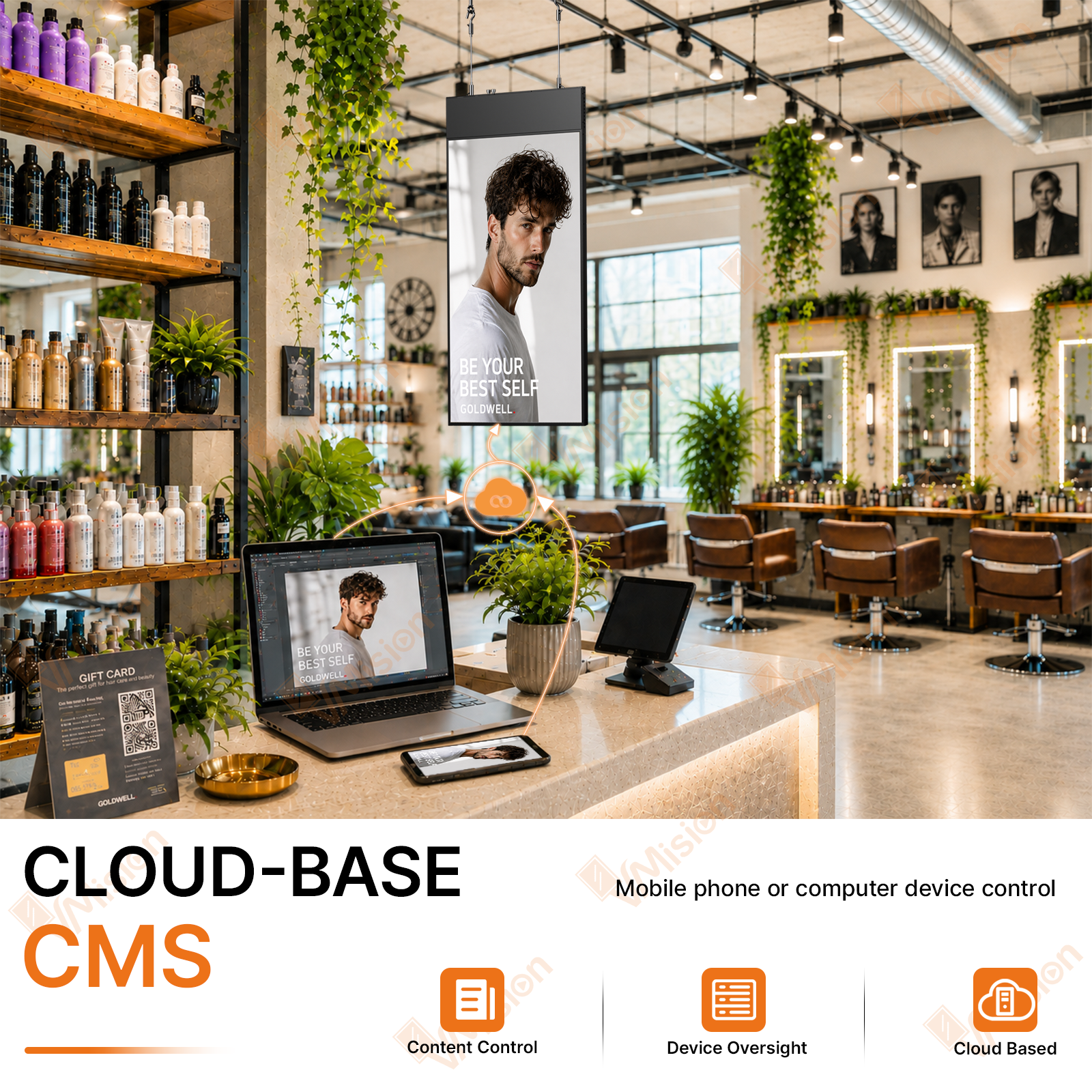

Control Both Screens.
From One Place.
Manage front and back display content from your phone or computer.
The VM-WHBV2's built-in cloud CMS lets you push different content to the front and back of your ceiling-hung display simultaneously — update your overhead advertising screens from anywhere, at any time, at zero ongoing cost.
Schedule different content for each side of your hanging display independently — from any device, anywhere.
Monitor every ceiling-mounted screen in your network in real time from a single dashboard.
No local server needed. Manage your overhead double-sided displays from any location, on any device.

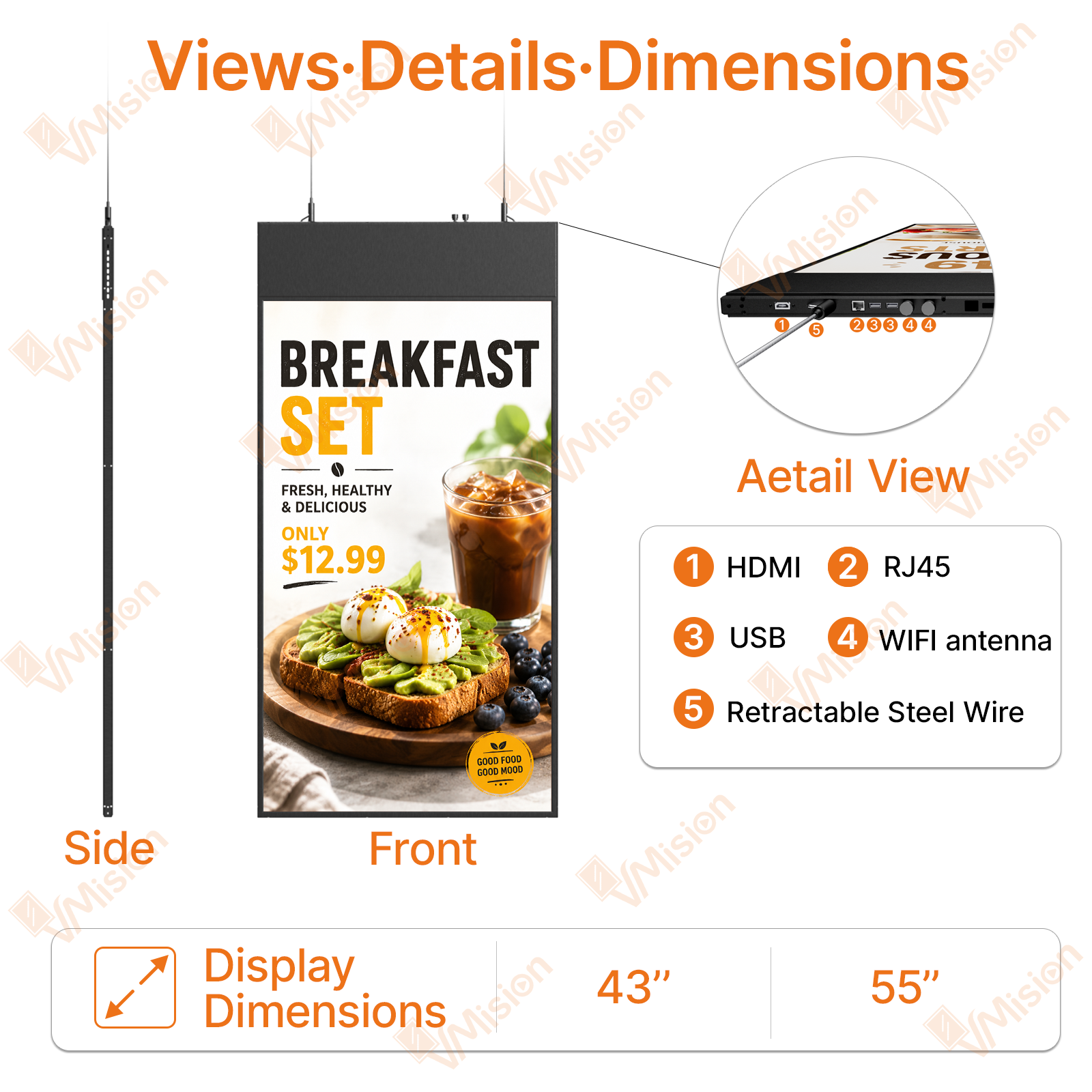

Easy Install.
Total Connectivity.
Available in 43" and 55".
Engineered for clean, professional ceiling suspension — the retractable steel wire system allows precise height adjustment, while all ports are neatly grouped for fast and tidy installation.
Specification
| Model | VM-WHBV2-43 | VM-WHBV2-55 | |
|---|---|---|---|
| Resolution | 1920×1080 | 3840×2160 | |
| Display Area (mm) | 529.4×941.2 | 680.4×1209.6 | |
| LCD Panel Type | IPS | ||
| Backlight | LED | ||
| Speaker | 5W, 8Ω (2 sets) | ||
| Aspect Ratio | 16:9 | ||
| Contrast Ratio | 1200:1 | ||
| Viewing Angle (H/V) | 178°H / 178°V | ||
| Brightness | 700 / 700 nits | ||
| Color Depth | 16.7M | ||
| Response Time | 6 ms | ||
| Operation Hour | 24/7 | ||
| Light Life Time | ≥50000 hours | ||
| Power Voltage | AC 100~240V, 50Hz/60Hz | ||
| Power Consumption | 100W | 230W | |
| Operating Temperature | 0°C ~ 50°C | ||
| Operating Humidity | 10% ~ 80% | ||
| Protection Class | N/A | ||
| Screen TNI | 55°C | 55°C | |
| Dimension (mm) | 1151.6x30x565.6 | 1420x30x716.8 | |
| Package Size (cm) | 131×26×81 | 156×27×96 | |
| Net Weight (kg) | 17.3 | 28.2 | |
| Gross Weight (kg) | 26.5 | 39.2 | |
| Android | RK3576 | ||
| Interface | USB×2 | RJ45×1 | HDMI IN×1 | ||
| System Version | Android 14.0 | ||
| RAM | 4G | ||
| ROM | 32G | ||
| Bluetooth | 5.0 | ||
| WiFi | 2.4G / 5G | ||
| Option |
Upgrade PC to i3, i5 or i7 Processor Anti-glare panel Monitor only remove Android |
||
