VM-IDKV2 Indoor Double Sided Digital Signage Kiosks
The VM-IDKV2 is VMision's dual-screen floor standing digital kiosk — engineered to maximise advertising reach with two independent displays running different content simultaneously. Optional G+G PCAP touch turns it into a powerful interactive wayfinding or self-service hub. Manage both screens remotely via free cloud CMS — split screen, scheduled playlists, and real-time device oversight from any device. Zero subscription. Forever.
Size : 43" 49" 55" 65"
● 500 nit brightness
● 2k/4k display
● Windows and Android option
● Touch screen option
● 3mm tempered glass
● Free CMS system/digital signage application
● Designed for 24/7 operation with a lifespan of over 50,000 hours
● Customized color and logo

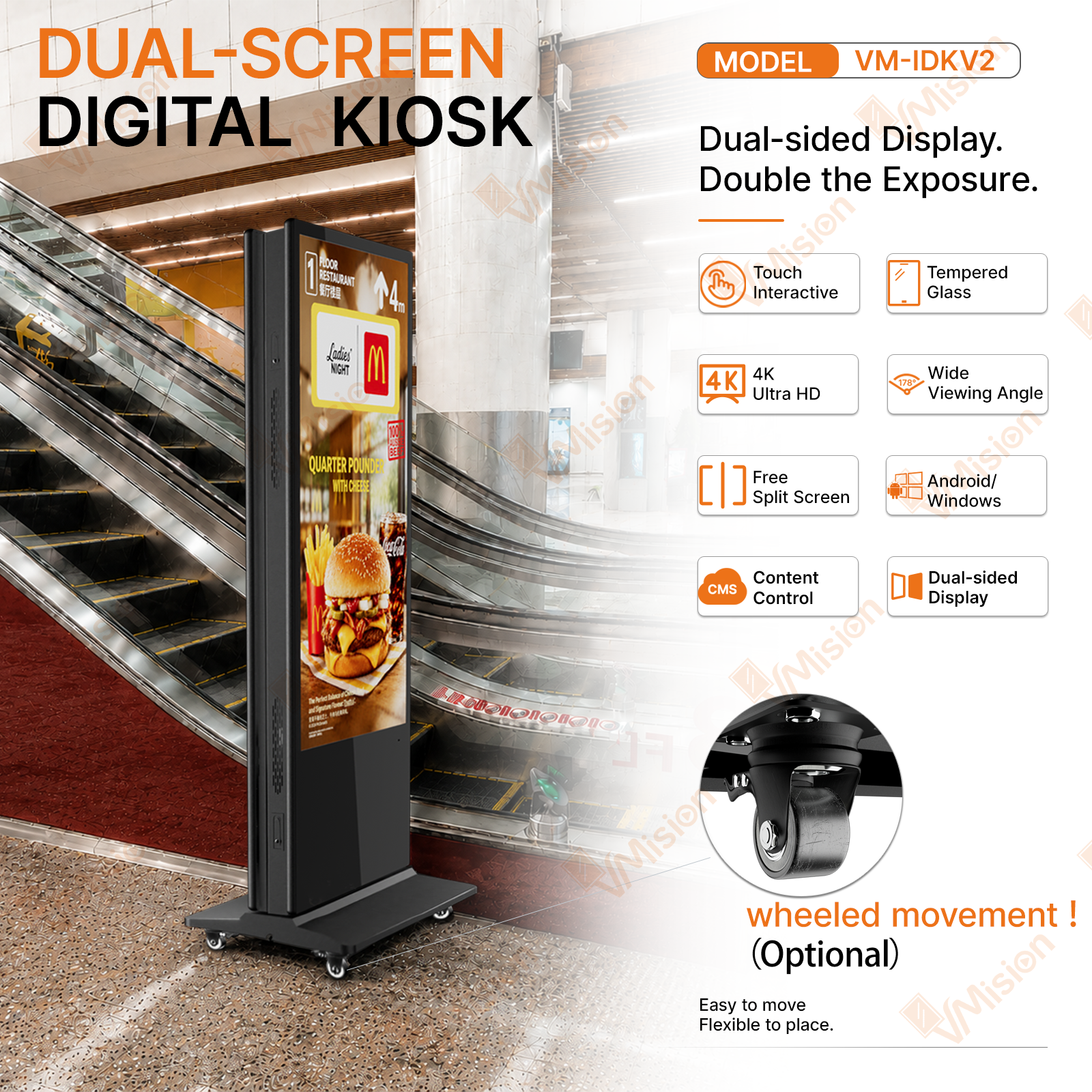

Dual-Screen
Digital Kiosk.
Dual-sided Display. Double the Exposure.
One kiosk. Two independent screens. Front and back run different content simultaneously — doubling your advertising reach without doubling your hardware budget. Built for airports, malls, hotels, and any high-traffic environment where audiences approach from multiple directions.

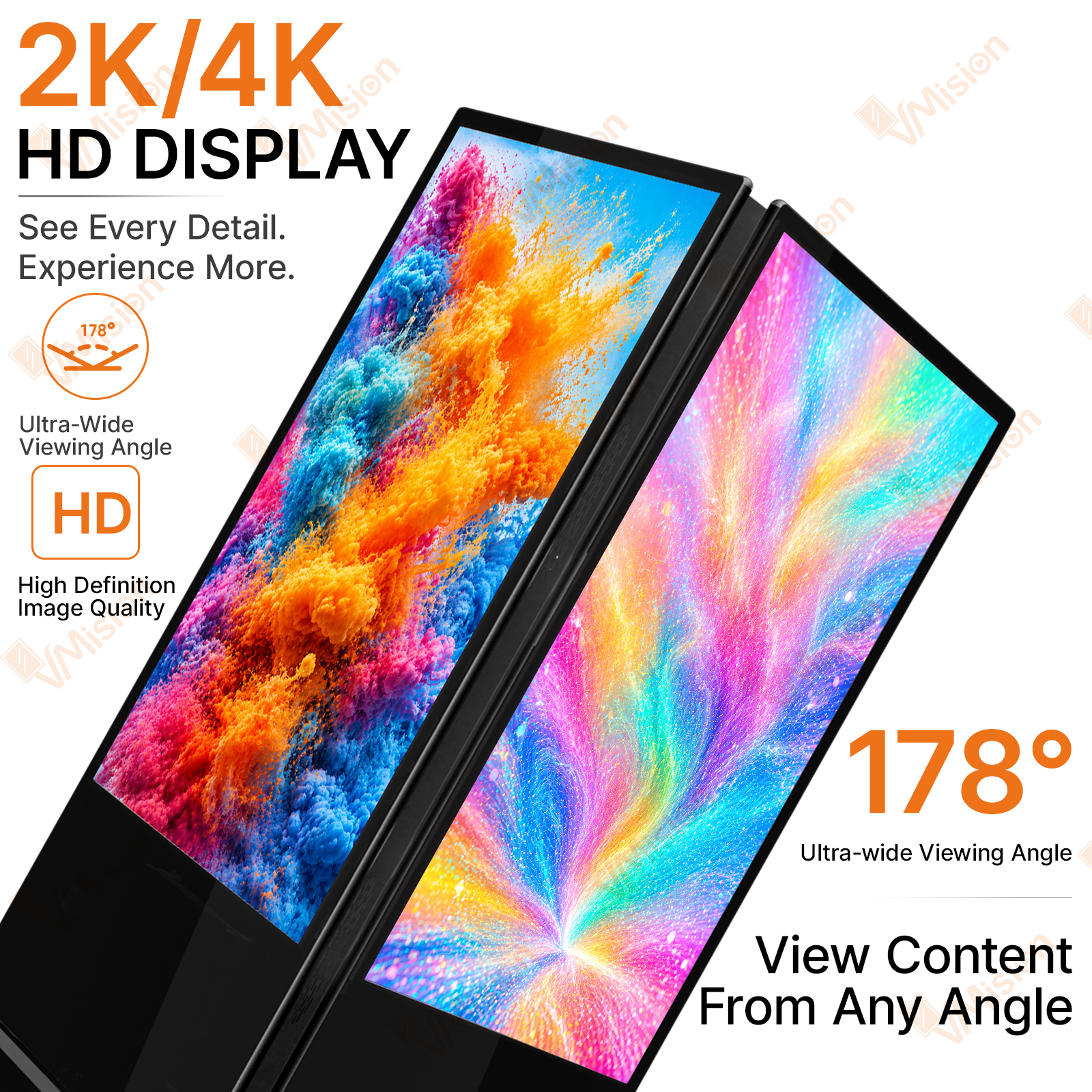

4K on Both Screens.
178° Every Direction.
See every detail. Experience more. From any angle.
The VM-IDKV2 doesn't just double your screens — it doubles your visual impact. Both the front and back displays deliver up to 4K UHD resolution with 178° ultra-wide viewing angles, ensuring vivid, accurate content is visible to every customer in every direction simultaneously.
Both screens support up to 3840×2160 resolution — delivering cinema-level image clarity on each side of your dual kiosk, from 43" up to 65" screen sizes.
IPS panel technology maintains full colour accuracy and brightness at extreme viewing angles — no fading, no colour shift, whether customers approach from the front, back, or side.
Rich 16.7M colour depth with exceptional contrast — your promotions and brand content appear vivid and true-to-life on both display faces simultaneously.

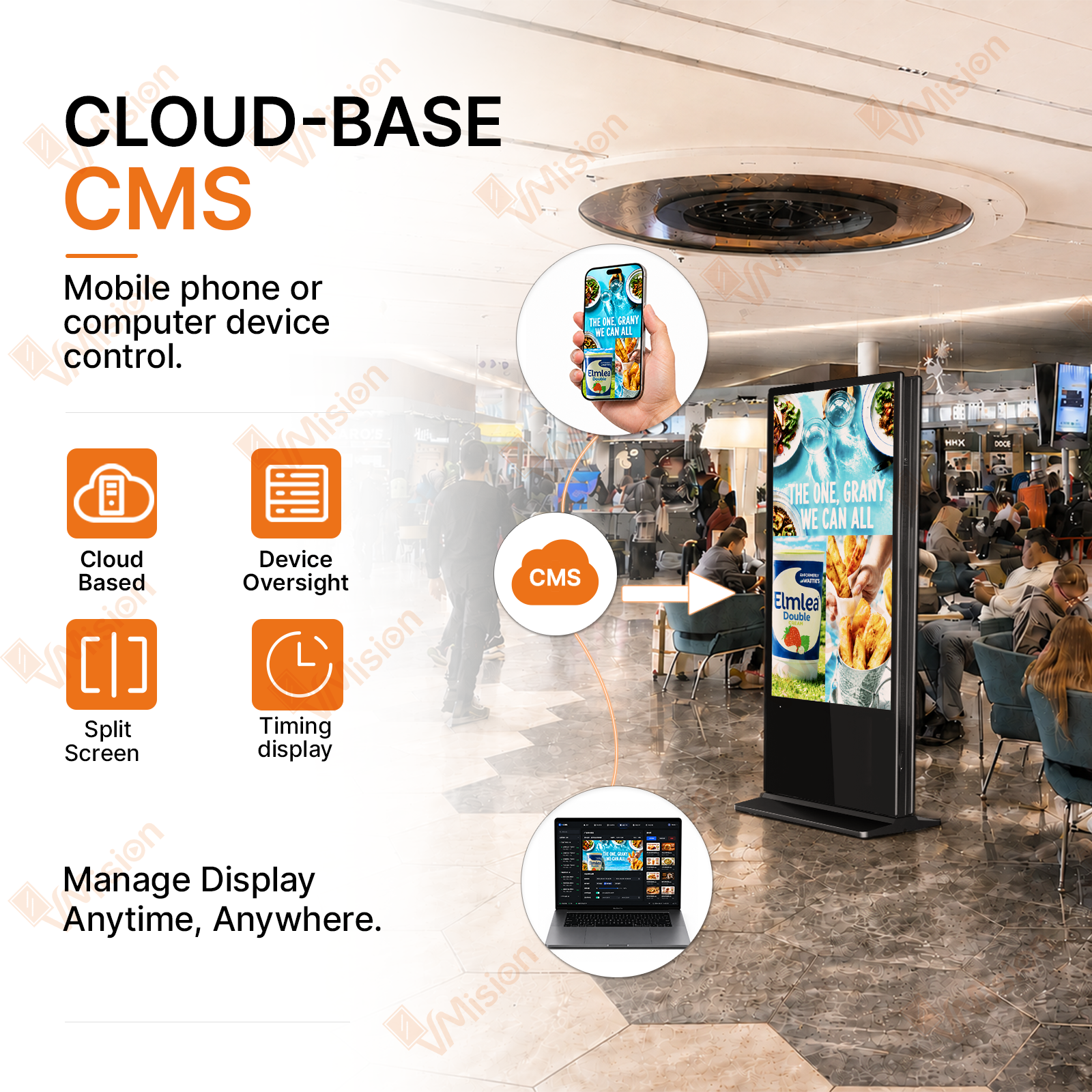

Manage Both Screens.
Anytime. Anywhere.
Mobile phone or computer device control.
Push different content to the front and back of your dual-screen kiosk independently — all from one CMS dashboard on any device. Schedule campaigns by time of day, split screens into multiple zones, and monitor every unit in your network in real time. No subscription. No fees. Forever.
Update both screens from any phone or computer, anywhere in the world.
Monitor all dual-screen kiosks in your network from one real-time dashboard.
Divide each display face into multiple content zones — video, images, text, and widgets running simultaneously.
Pre-schedule morning, afternoon, and evening content — auto-switching without any staff input.

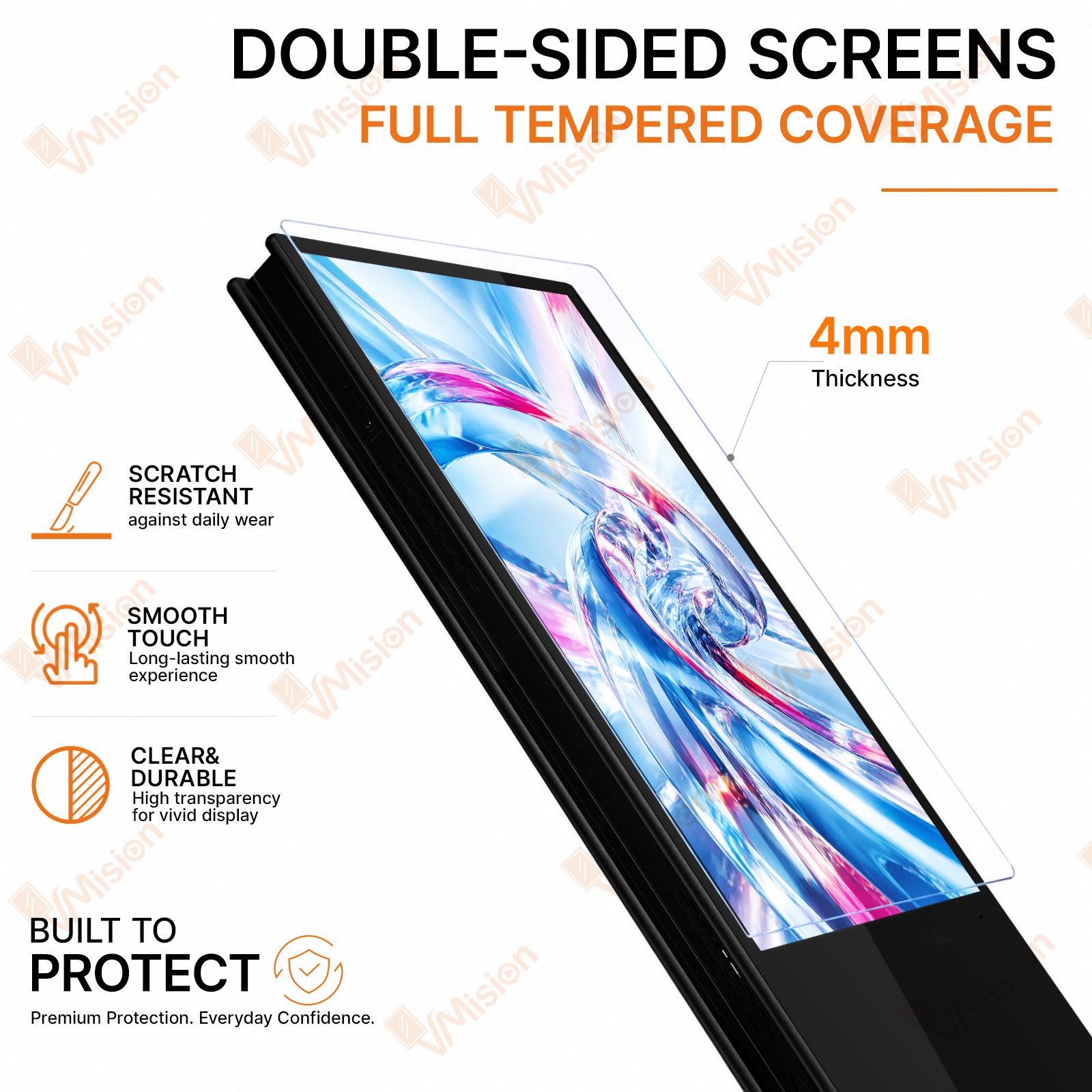

Full Tempered Glass
Coverage. Both Sides.
Built to protect. Premium protection. Everyday confidence.
Unlike single-screen kiosks, the VM-IDKV2 protects both display surfaces with 4mm high-transmittance tempered glass — so your dual-screen investment stays looking sharp and performing flawlessly through years of continuous public use in airports, malls, and transit hubs.
With two public-facing screens in high-traffic environments, durability matters twice as much. 4mm tempered glass on both sides resists daily wear, keys, and accidental impacts.
For touch-enabled configurations, both display surfaces maintain smooth, responsive PCAP touch performance throughout years of continuous operation.
Optical-grade glass clarity ensures your 4K content on both faces appears with maximum vibrancy and zero visual compromise — the glass is there to protect, not to dim.

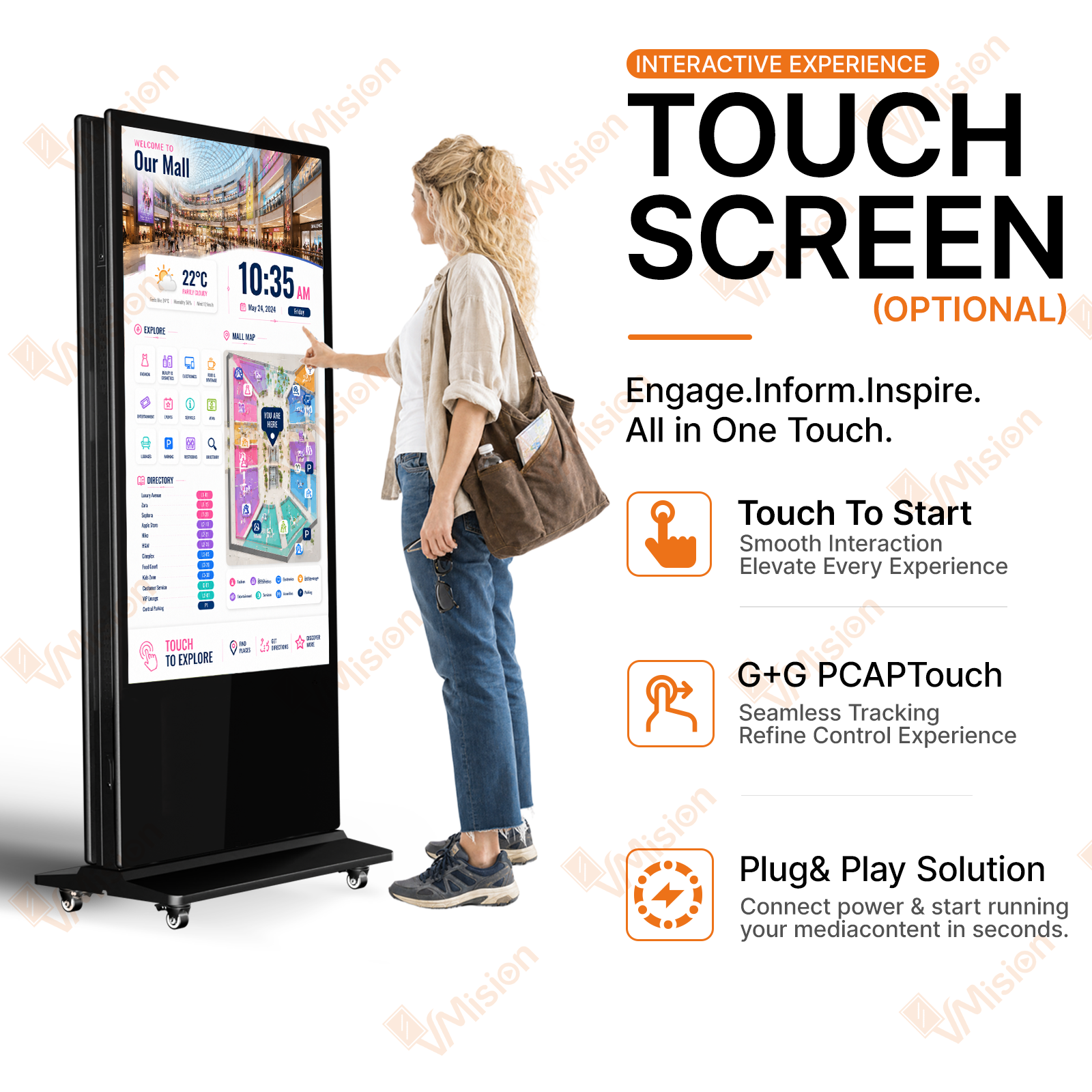

G+G PCAP Touch.
Engage. Inform. Inspire.
All in one touch. Seamless tracking. Refined control.
Add optional G+G PCAP touch capability to your VM-IDKV2 and transform it from a passive advertising display into an active engagement hub — mall wayfinding, hotel information, airport navigation, and interactive product exploration, all from a single dual-screen kiosk.
Smooth, responsive PCAP capacitive touch interaction — elevates every customer experience from passive viewing to active engagement in malls, airports, and hotels.
Glass-to-glass PCAP technology provides precise multi-touch tracking with refined control — accurate response across the full large-format screen surface, from edge to edge.
Connect power and the VM-IDKV2 is immediately ready to display and interact. No complex setup required — your dual-screen kiosk is operational in seconds.

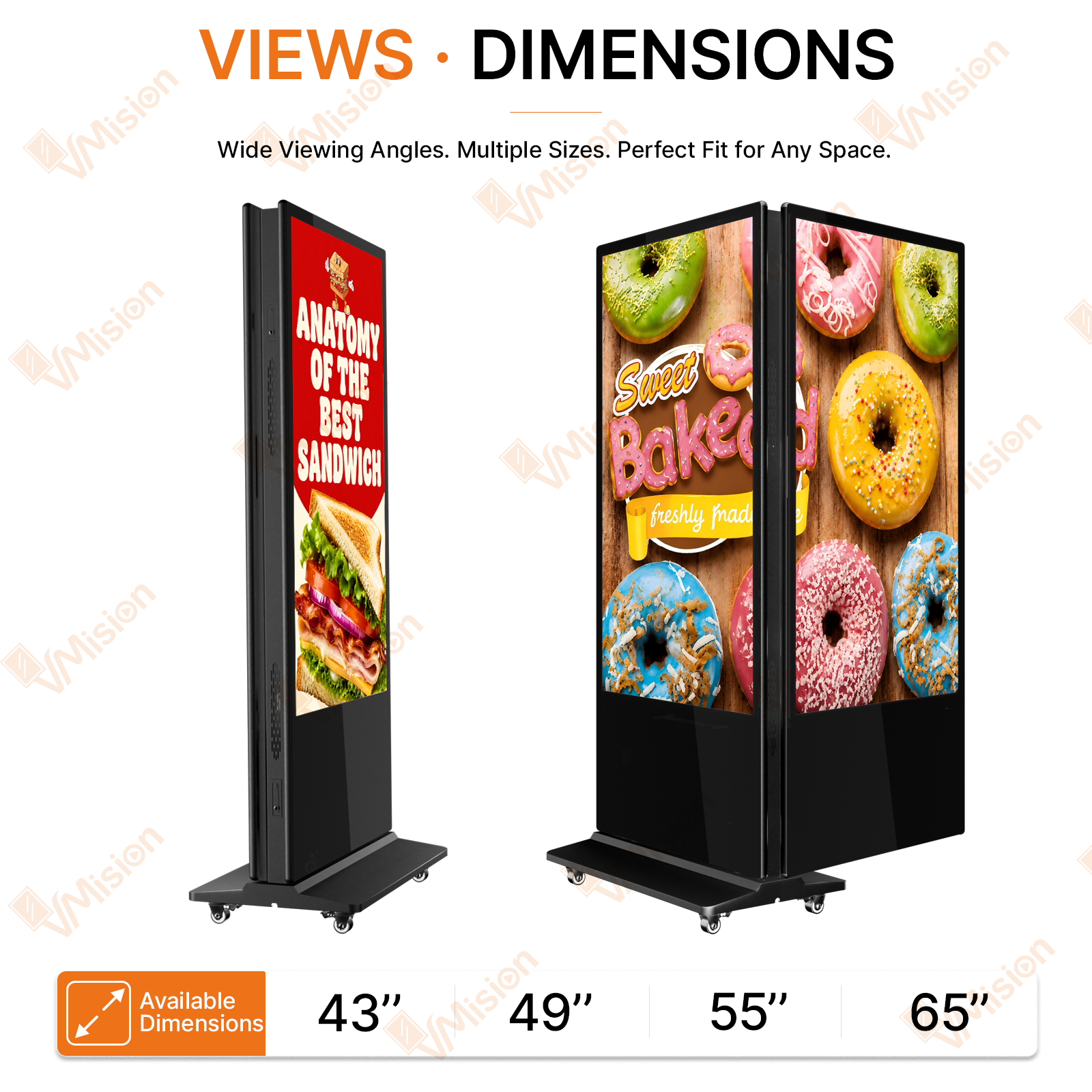

Four Sizes.
Dual Screens. Wide Angles.
Wide viewing angles. Multiple sizes. Perfect for any space.
Available from 43" to 65" — each VM-IDKV2 unit features two independent back-to-back screens, an optional wheeled base for flexible repositioning, and 178° wide viewing coverage on both faces for maximum audience reach.
Two fully independent display faces — run different campaigns simultaneously on each side, capturing audiences approaching from every direction.
Easy to move, flexible to place. The wheeled base option lets you reposition your kiosk for events, season changes, or store reconfigurations without tools or effort.
Specification
| Model | VM-IDKV2-43 | VM-IDKV2-49 | VM-IDKV2-55 | VM-IDKV2-65 |
|---|---|---|---|---|
| Resolution | 1920×1080 | 1920×1080 | 3840x2160 | 3840×2160 |
| Display Area (mm) | 528×940 | 604×1074 | 679×1209 | 802×1427 |
| LCD Panel Type | IPS | |||
| Backlight | LED | |||
| Speaker | 5W, 8Ω (2 sets) | |||
| Aspect Ratio | 16:9 | |||
| Contrast Ratio | 1200:1 | |||
| Viewing Angle (H/V) | 178°H / 178°V | |||
| Brightness | 500 nits | |||
| Color Depth | 16.7M | |||
| Response Time | 6 ms | |||
| Operation Hour | 24/7 | |||
| Light Life Time | ≥50000 hours | |||
| Power Voltage | AC 100~240V, 50Hz/60Hz | |||
| Power Consumption | 220W | 310W | 410W | 580W |
| Operating Temperature | 0°C ~ 50°C | |||
| Operating Humidity | 10% ~ 80% | |||
| Protection Class | 4mm tempered glass | |||
| Screen TNI | 55°C | 55°C | 55°C | 55°C |
| Dimension (mm) | 615×1817 | 691×1874 | 766×1967 | 888×2008 |
| Package Size (cm) | 194×29×777 | 200×29×86 | 210×29×94 | 214×29×104 |
| Base Package Size (cm) | 63×53×8 | 71×54×8 | 79×55×8 | 91×55×8 |
| Net Weight (kg) | 86 | 99 | 104 | 155 |
| Gross Weight (kg) | 94 | 108 | 113 | 165 |
| VESA Hole (mm) | N/A | |||
| Android | RK3576 | |||
| Interface | USB×2 | RJ45×1 | HDMI IN×1 | |||
| System Version | Android 14.0 | |||
| RAM | 4G | |||
| ROM | 32G | |||
| Bluetooth | 5.0 | |||
| WiFi | 2.4G / 5G | |||
| Option |
Upgrade PC to i3, i5 or i7 Processor Touch screen Monitor only remove Android |
|||
